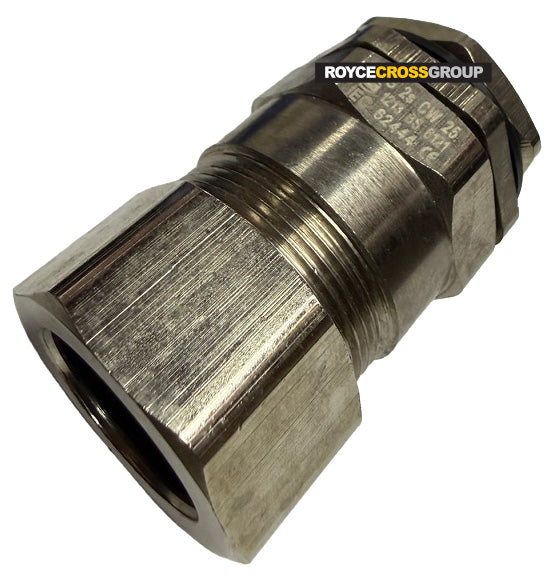

Captive component gland for SWA: M25 16-24.5mm IP66

Suitable for indoor and outdoor use, the captive component gland for steel wire and aluminium armoured cable provides a seal on the outer sheath of the cable, sealing to IP66.

SPECIFICATIONS

Type: CW captive component gland

Gland material: Brass (nickel plated) BS 2874, EN 12164, aluminium ASTM B221, stainless steel 316

Seal material: Thermoset elastomer or silicon on request

Cable type: Steel wire armour/aluminium armour wire

Armour clamping: Captive rotating cone

Sealing area: Outer sheath

Optional accessories: Adaptor, earth tag, locknut, reducer, serrated washer, shroud

Gland size reference: 2s-25s - for use with CCG "Handi fit" boxes

Metric entry thread (C): M125x1.5

Metric entry thread minimum (D): 10mm

NPT entry thread (C): 3/4 - 1

NPT entry thread minimum (D): 15/19

Cable detail: Max A - 17.5; min B -  16; max B - 24.5mm

Maximum length (E): 56mm

Armour diameter: min F - 1.25mm; max F - 1.6mm

Units: Each
