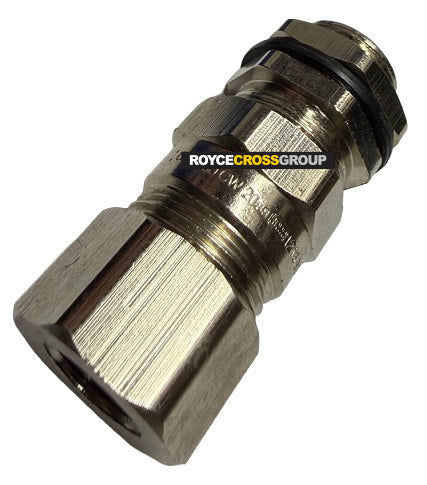

CW captive component gland: M20 8-13.5mm

For indoor or outdoor use, the captive component gland for steel wire and aluminium armoured cable provides a seal on the outer sheath of the cable, sealing to IP66.

SPECIFICATIONS

Type: CW

Gland material: Brass (nickel plated) BS 2874, EN 12164, aluminium ASTM B221, stainless steel 316

Seal material: Thermoset elastomer or silicon on request

Cable type: Steel wire armour/aluminium armour wire

Armour clamping: Captive rotating cone

Sealing area: Outer sheath

Optional accessories: Adaptor, earth tag, locknut, reducer, serrated washer, shroud

Metric entry thread (C): M20x1.5

Metric entry thread minimum (D): 10

NPT entry thread (C): 1/2, 3/4

NPT entry thread minimum (D): 15

Cable detail: Max A - 8.5; min B -  8; max B - 13.5;

Maximum length (E): 41

Armour diameter: min F - 0.9; max F - 0.9
