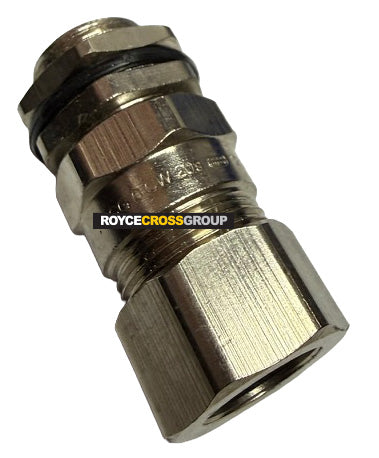

CW captive component cable gland: 20mm

Suitable for indoor and outdoor use, the captive component gland is suitable for steel wire and aluminium (SWA) armoured cable. The glands have no loose parts and boast two-piece handling.

SPECIFICATIONS

Type: CW captive component gland

Gland size reference: 0-20s

Metric entry thread: M20 x 1.5; minimum 10mm

NPT entry thread: ½/¾; min 15mm

Cable detail: Max A - 12mm; min B 11.5mm; mac B 16mm

Maximum length E: 43mm

Armour diameter: min 0.90mm; max 1.25mm

Hexagonal detail: max 'flats' 24mm; max 'crns' 27mm

Install torque value: 35Nm

Rating: IP66

Units: Each
