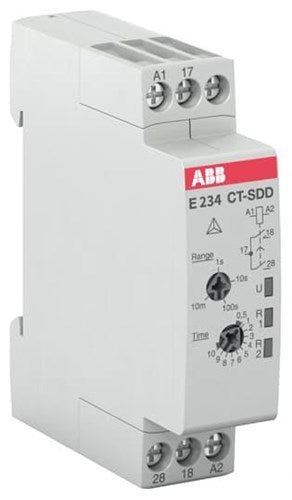

CT-SDD.22 time relay, star-delta 2 n/o 24-48V DC, 24-240VAC

Providing a star-delta function with seven time ranges from 0.05 seconds to 10 minutes and a fixed transition time of 50 minutes, the CT-SDD.22 is a single-function electronic time relay from ABB's CT-D timer range. The time relay operates with a rated control supply voltage of 24 to 48 volts DC/24 to 240 volts AC. It has a two n/o output with contacts rated at 250 volts/4 amps.

FEATURES

• Seven time ranges

SPECIFICATIONS

Timer relay type: Star-Delta

Time range: 0.05 seconds to 10 minutes

Rated control supply voltage (Us): 24-240V AC; 24-48V DC

Output: 2 n/o contacts

Terminal type: Screw terminals

Rated operational current AC-12: (230 volts) 5 amps

Degree of protection: Housing IP50; terminals IP20

Width: 17.5mm

Depth/length: 63mm

Height: 80mm

Weight: 0.059kg

Units: Each
