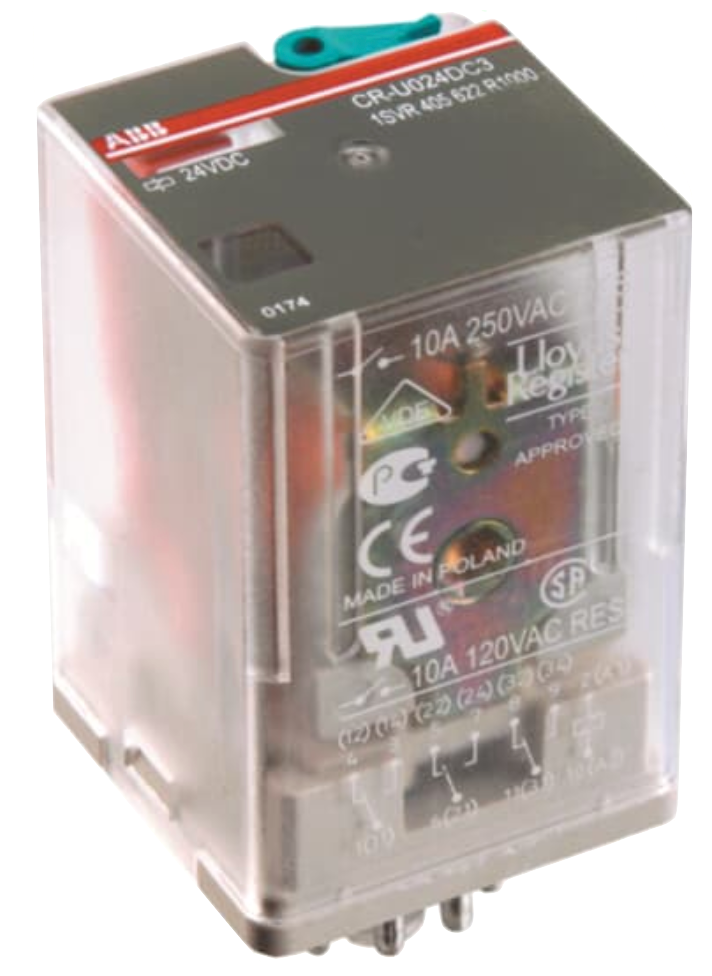

CR-U plug in relay 24Vac, 2c/o 10 amps
The ABB CR-U pluggable interface relay range is used for electrical isolation, amplification and signal matching between the electronic controls - PLC, iPC or field bus systems - and the sensor/actuator level.
The CR-U range offers up to three contacts with one relay with an integrated test button, facilitating quick and easy commissioning.
The CR-U024AC2L pluggable interface relay operates with a 24-volt AC-rated control supply voltage and has two c/o (SPDT) output contacts rated at 250 volts/10 amps.
The relay has an integrated orange test button for manual actuation and locking of the output contacts and an integrated LED.
FEATURES
- Integrated orange test button for manual actuation
- 24 volts AC-rated control supply voltage
SPECIFICATIONS
Function: Pluggable universal interface relay CR-U
Sub-function: Relay with built-in LED
Output: 2 c/o (SPDT) contacts
Output signal: 250 volts/10 amps
Rated control supply voltage: 24 volts AC
Width: 35mm
Height: 54.4mm
Depth: 35mm
Weight: 0.083kg
Units: Each
