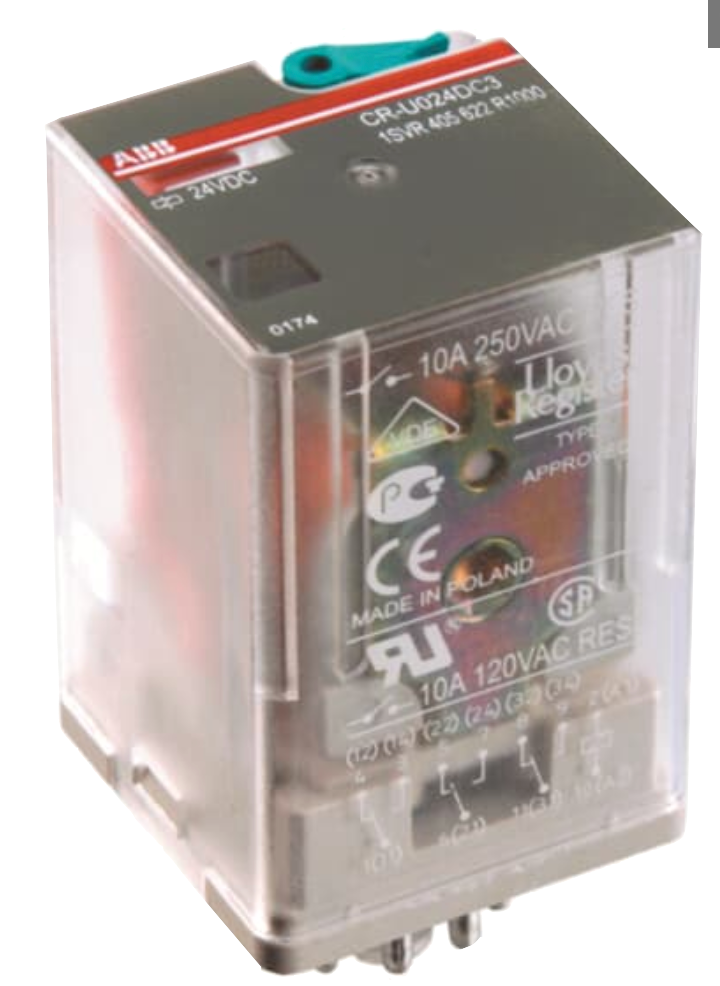

CR-U plug in relay 24V DC, 2c/o 10 amps
The ABB CR-U pluggable interface relay range is used for electrical isolation, amplification and signal matching between the electronic controls - PLC, iPC or field bus systems - and the sensor/actuator level.
The CR-U range offers up to three contacts with one relay with an integrated test button, facilitating quick and easy commissioning.
The CR-U024DC2L pluggable interface relay operates with a 24-volt DC-rated control supply voltage and has two c/o (SPDT) output contacts rated at 250 volts/10 amps.
The relay has an integrated blue test button for manual actuation and locking of the output contacts and an integrated LED.
Standard sockets, logic sockets, pluggable function modules, holder and marker are available as accessories.
FEATURES
- Integrated blue test button for manual actuation
- 24 volts AC-rated control supply voltage
SPECIFICATIONS
Function: Pluggable universal interface relay CR-U
Sub-function: Relay with built-in LED
Output: 2 c/o (SPDT) contacts
Output signal: 250 volts/10 amps
Rated control supply voltage: 24 volts DC
Width: 35mm
Height: 54.4mm
Depth: 35mm
Weight: 0.083kg
Units: Each
