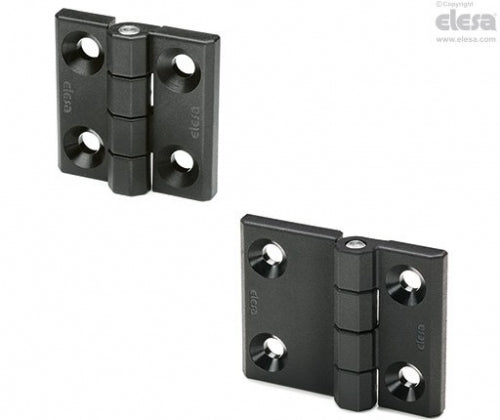

Black hinge - W50mm, H50mm with recessed D6.5mm holes

The CFM Series hinge is 50mm wide and 50mm high with recessed 6.5mm-diameter holes, each having 30mm-wide and 30mm-high hole centres for cylindrical head screws with washers. The hinge boasts a maximum rotation angle of 270 degrees. This model has a stainless-steel rotating pin.

SPECIFICATIONS

Type: Hinge

Colour: Black

Width: 50mm

Height: 50mm

Hole diameter: 6.5mm

Hole size: 30mm wide, 30mm high

Suits: Cylindrical head screws with washers

Units: Each
