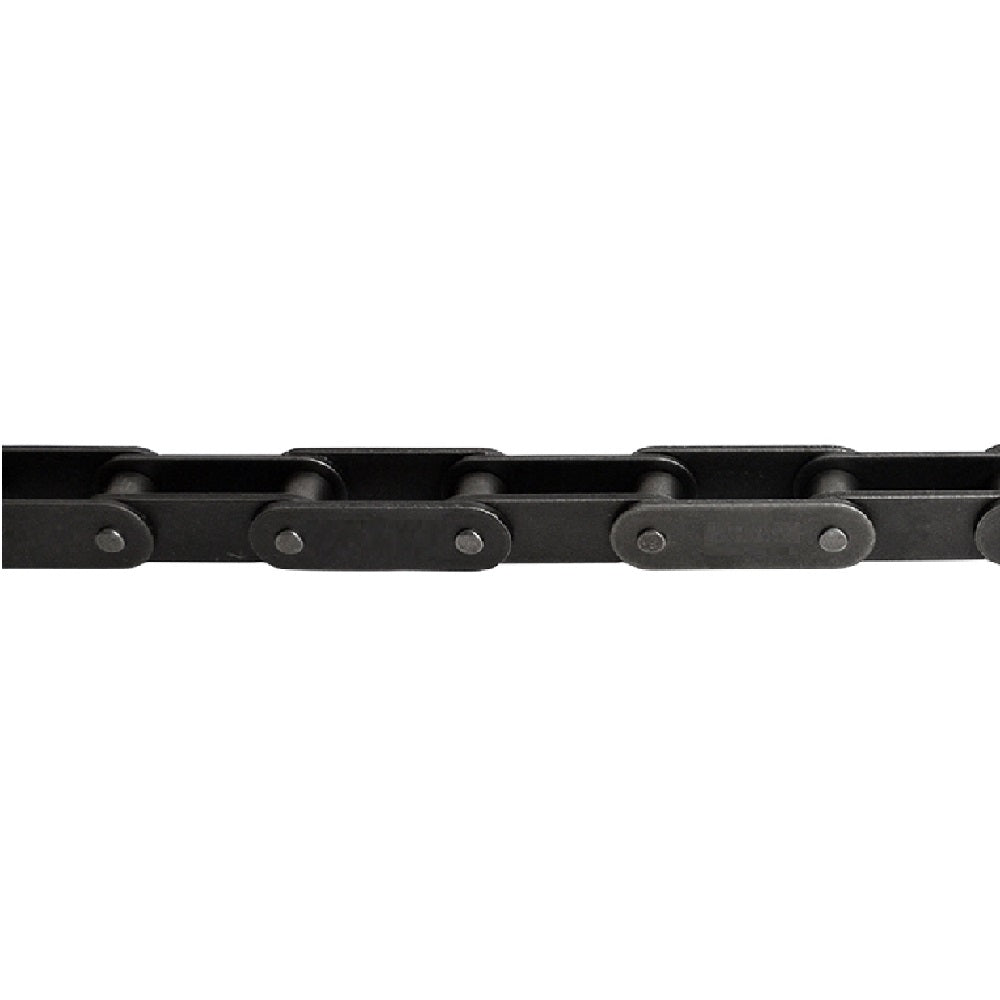

Tsubaki C2040H chain - Straight side plate standard roller
The basic construction of Tsubaki's standard roller chain boasts a chain pitch twice as long as a double pitch chain. The chain has flat-shaped link plates. This series is regulated by ISO-1275-A, ASME B29. 100 and JIS B 1803.
FEATURES
Accurate tolerances for overall length
Chain sliding resistant to shock loading
Simple construction
Roller diameter is smaller than the plate width
Reduces shock and wear effectively when the chain engages the sprocket
Used for standard applications
SPECIFICATIONS
Material: Carbon steel
Shape: Flat side plates
Pitch: 1" (25.4mm)
Roller diameter: 7.92mm
Width between inner plates: 7.95
Pin diameter: 3.97mm
Pack: 120 links/10ft pack
Weight:
