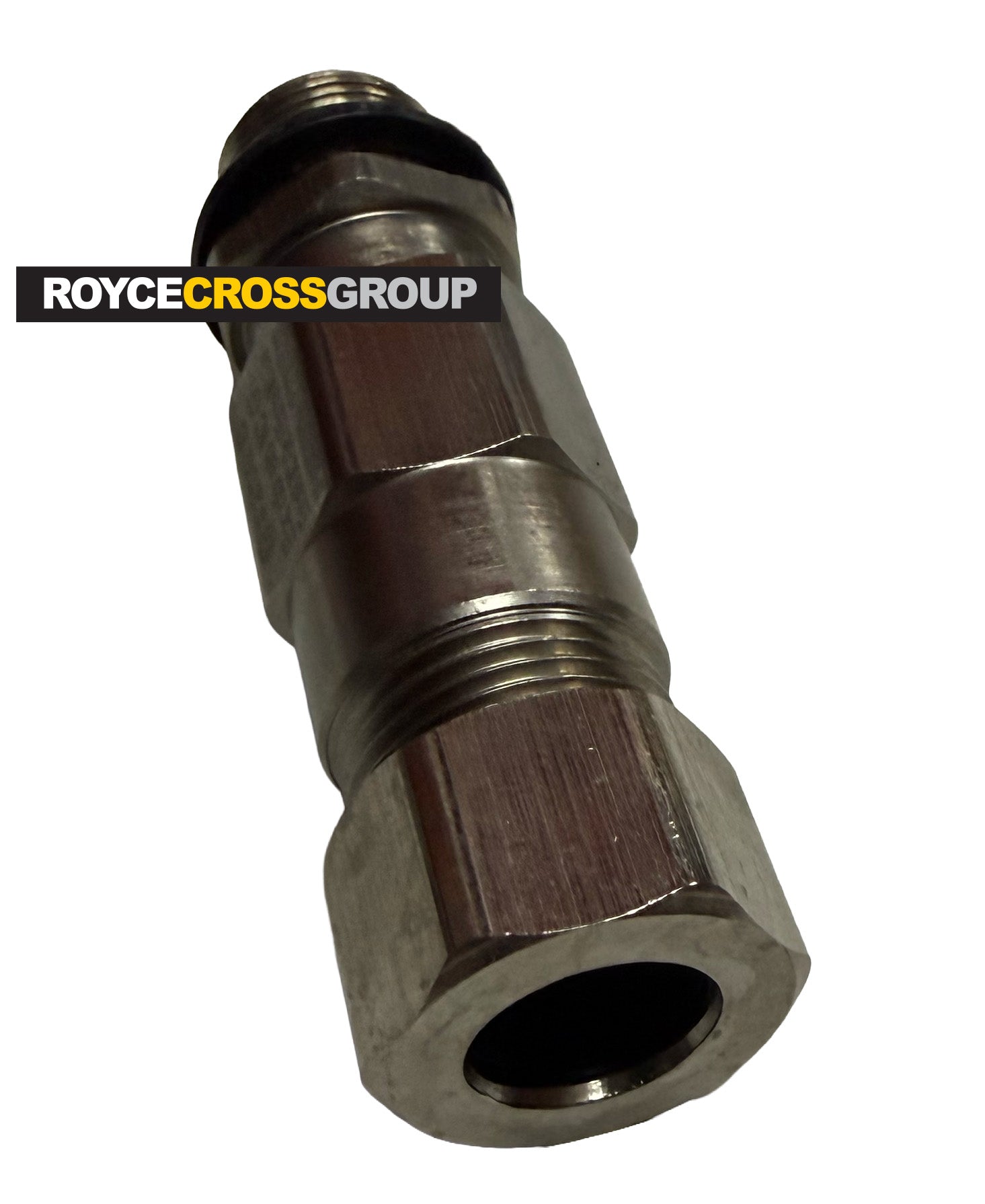

Barrier gland for unfilled SWA/aluminium armoured cable Ex de IIc Gb/Ex tb IIc Db

Suited for hazardous areas, the injection resign barrier gland is made from brass.

FEATURES

• For indoors, outdoors, group II, II, zone 1, 2, 21 and 22 hazardous areas
• For unfilled hygroscopic multicore cables refer to IEC 60079-14; 9.3.2 and 10.6.2a, IEX 61892-7, 10.6 and 10.7
• Freely rotating captive cone and inspectible cone ring provides an armour clamp and earth bond on steel wire armour and aluminium armour
• Precision manufactured from high-quality brass (marine grade electroless nickel plated); available in stainless steel 316/316L
• Instantly mixed and injected resin forms a 100 per cent barrier seal around the cable's individual cores
• Prevents explosive gases and/or liquids transmitting down the cable
• Complete with thread sealing gasket
• SWA M20 (E1Ex-Qs)

SPECIFICATIONS

Type: E1EX-QuickStop-Ex

Gland material: Brass (marine grade electroless nicklet plated)

Gland reference: 00-20s

Cable type: Steel wire armour, aluminium armour

Inner: 3mm to 8.5mm

Outer: 8mm to 13.5mm

Units: Each
