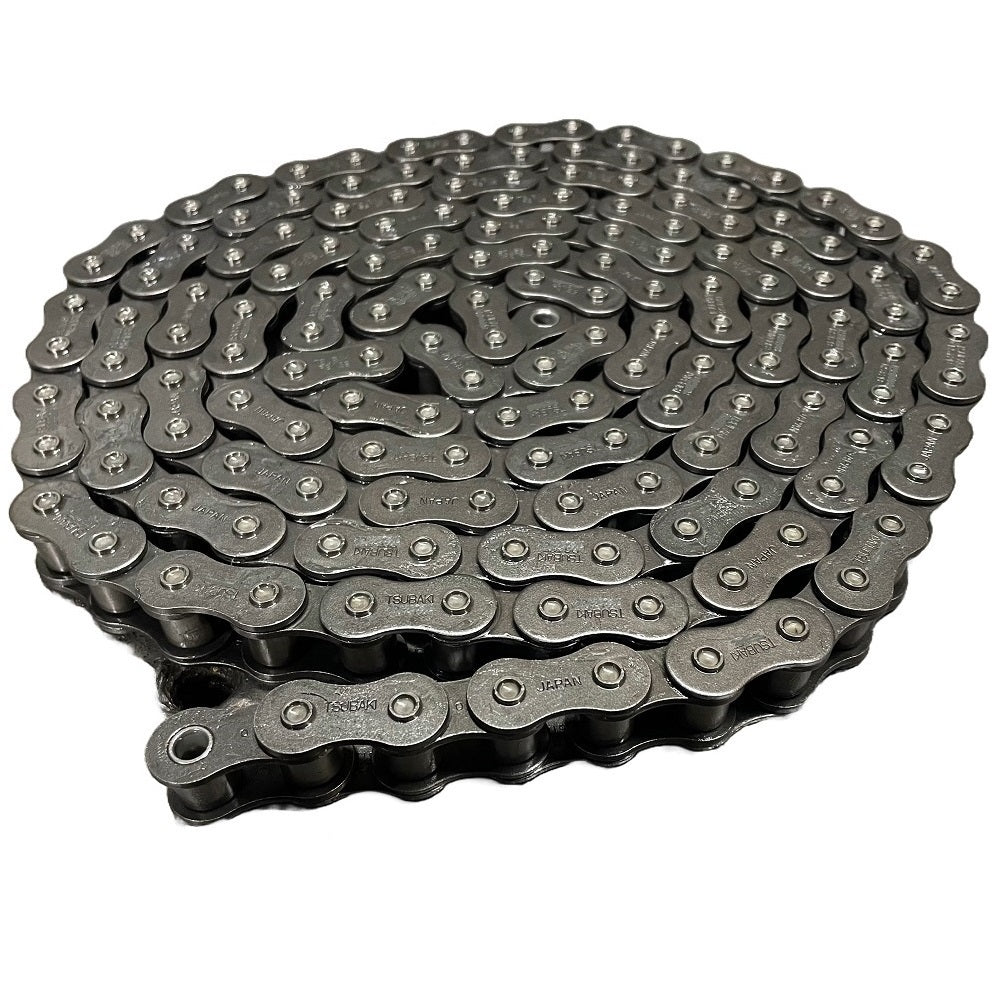

3/4" American standard ASA 60 Tsubaki single-strand roller chain

This roller chain is designed for light industrial and agricultural uses.

This chain, connecting links and offset links is available in sizes from ASA 25 to ASA 200. Simplex, duplex and triplex executions are available.

Royce Cross Group will cut chain to your specified length for sizes up to RS16B and RS80 in Tsubaki single-strand and double-strand types.

FEATURES

• Easy handling
• Quality chain
• Long wear

TECHNICAL DATA

ANSI No: 60

Pitch: 19.05mm

Roller diameter: 11.91

Width between roller link plates: 12.7mm

Link plate thickness: 2.4mm

Link plate height: 18.1mm

Pin diameter: 5.96mm

Average tensile strength: 44.1kN

Maximum allowable load: 8830N

Average weight: 1.53kg/m

Number of links per box: 160

Box length: Sold per foot, available in 10 foot packs. This chain is available to be cut to your specified length.
