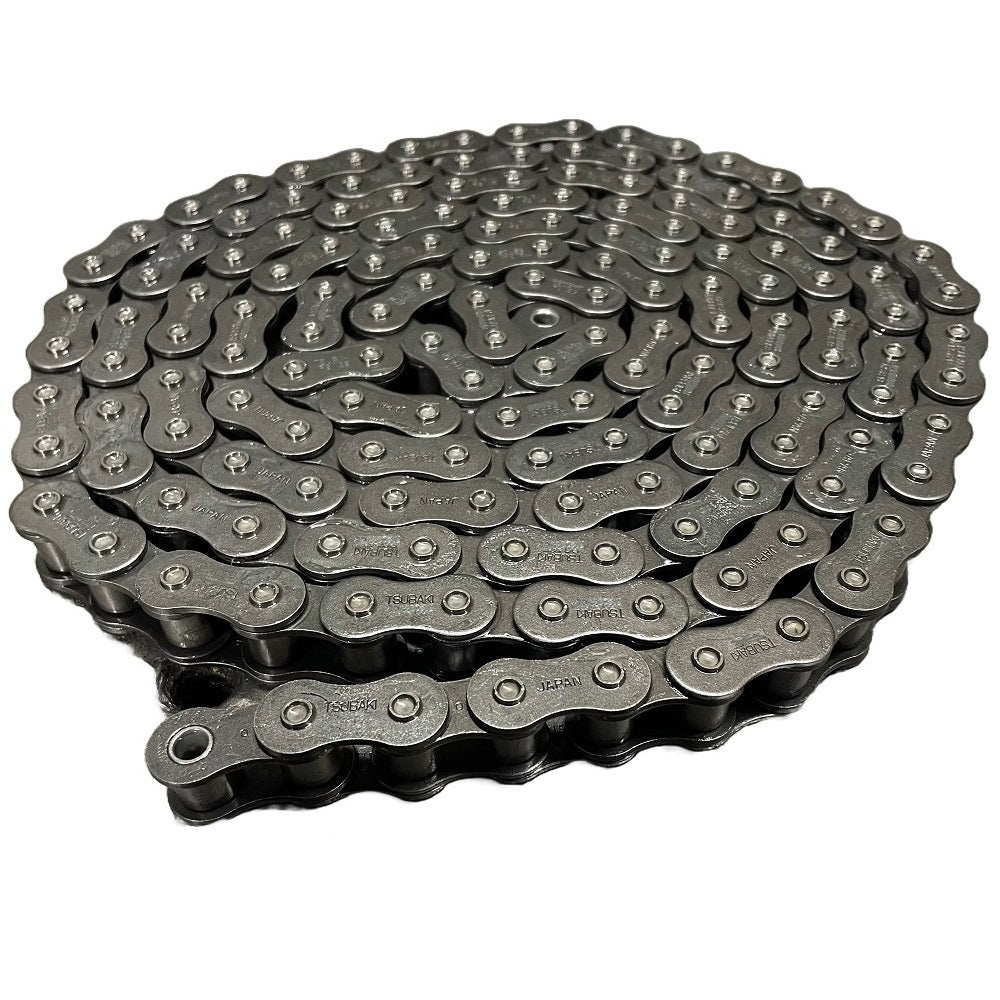

1/2" x 1/8" wide American standard ASA 37 Tsubaki single-strand roller chain

This roller chain is designed for industrial and agricultural uses.

It is interchangeable with other chains conforming to ANSI standards.

This chain, connecting links and offset links is available in sizes from ASA 25 to ASA 200. Simplex, duplex and triplex executions are available.

Royce Cross Group will cut chain to your specified length for sizes up to RS16B and RS80 in single- strand and double-strand types.

FEATURES

Easy handling

Quality chain

Long wear

TECHNICAL DATA

ANSI No: 37

Pitch: 12.70mm

Roller diameter: 7.80mm

Width between roller link plates: 3.40mm

Pin diameter: 3.63mm

Average tensile strength: 9.41kN

Maximum allowable load: 1.37kN

Average weight: 0.29kg/m

Number of links per box: 240

Quantity: Sold per foot, available in 10 foot packs. This chain is available to be cut to your specified length.
