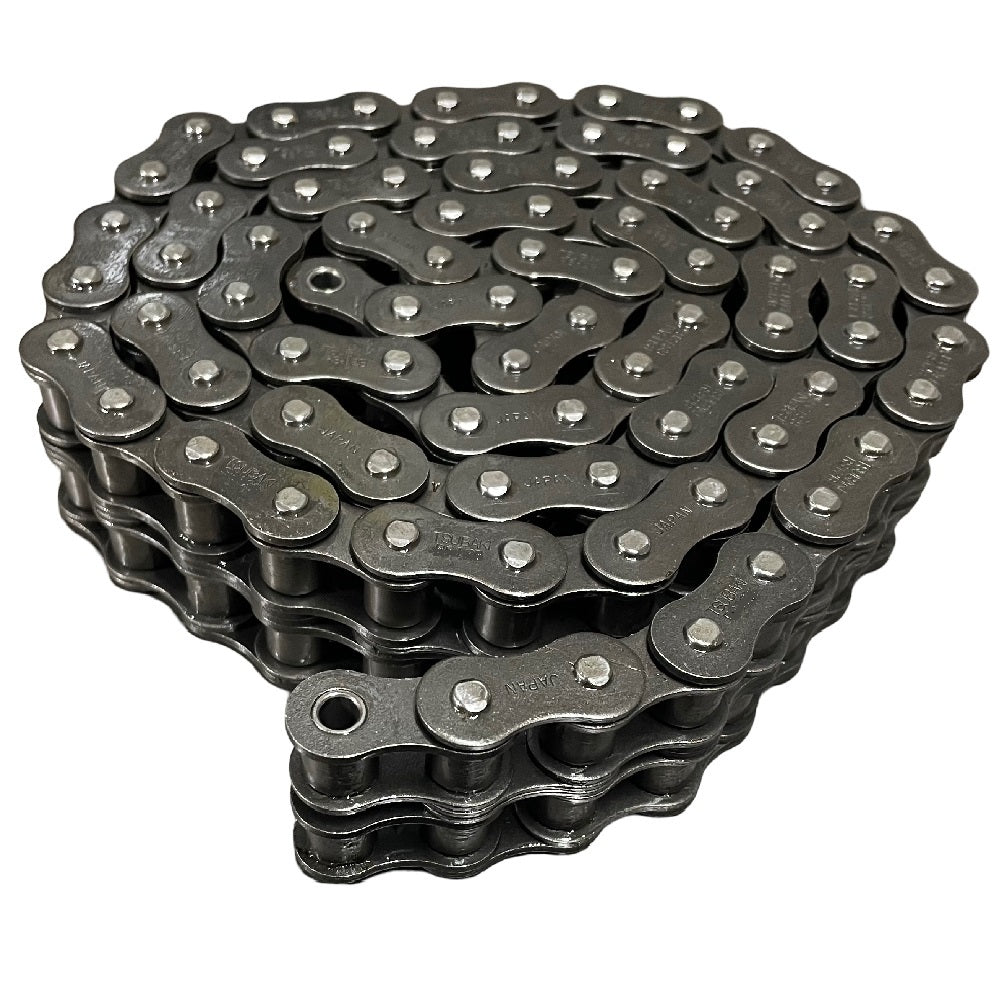

2" American standard ASA 160-2 Tsubaki double-strand roller chain

This double-strand roller chain is designed for light industrial and agricultural uses.

This chain, connecting links and offset links is available in sizes from ASA 25 to ASA 200. Simplex, duplex and triplex executions are available.

Royce Cross Group will cut chain to your specified length for sizes up to RS16B and RS80 in Tsubaki single-strand and double-strand types.

FEATURES

• Easy handling
• Quality chain
• Long wear

TECHNICAL DATA

ANSI No: 160mm

Pitch: 50.80mm

Roller diameter: 28.58mm

Width between roller link plates: 31.75mm

Link plate thickness: 6.4mm

Link plate height: 48.2mm

Pin diameter: 14.29mm

Average tensile strength: 559kN

Maximum allowable load: 90kN

Average weight: 20.04kg/m

Number of links per unit: 60

Units: Sold per foot, available in 10 foot packs only. This chain is available to be ordered to your specified length.
