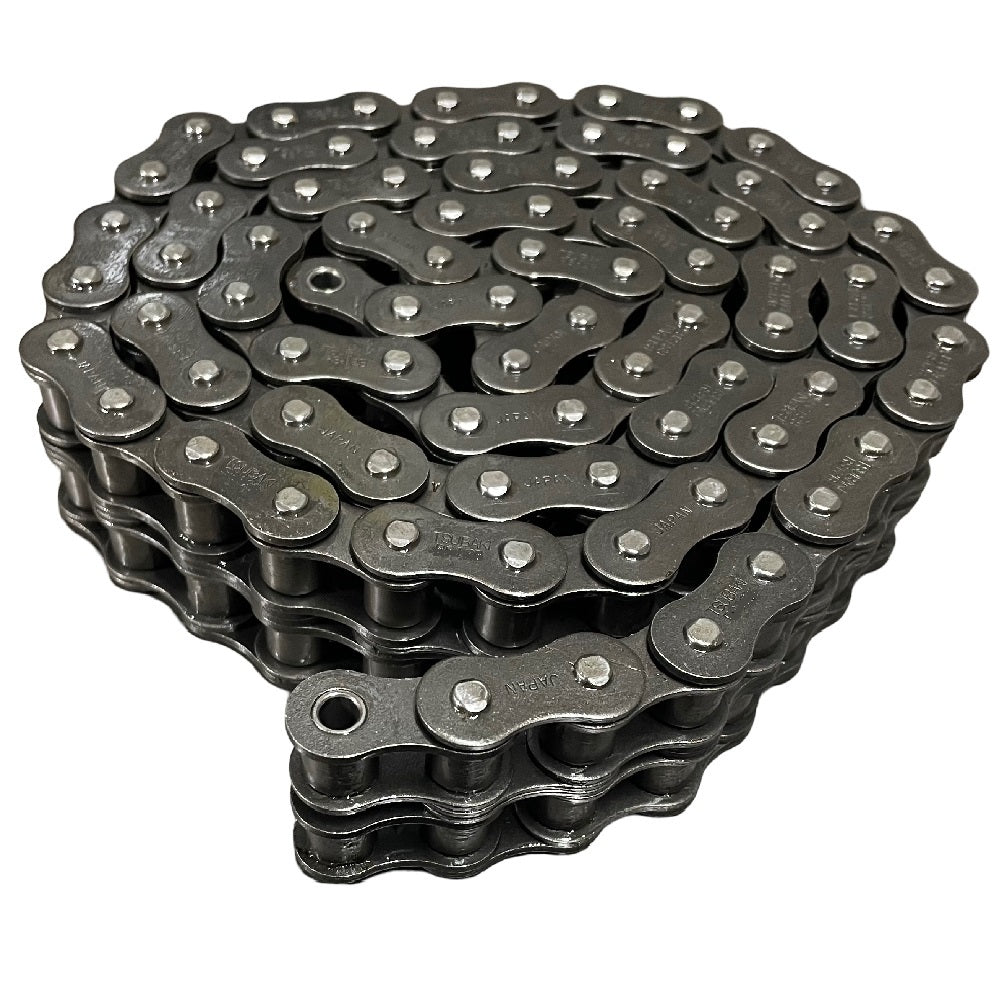

1-3/4" American standard ASA 140-2 Tsubaki double- strand roller chain
This double-strand roller chain is designed for light industrial and agricultural uses.
This chain, connecting links and offset links is available in sizes from ASA 25 to ASA 200. Simplex, duplex and triplex executions are available.
Royce Cross Group will cut chain to your specified length for sizes up to RS16B and RS80 in Tsubaki single-strand and double-strand types.
FEATURES
Easy handling
Quality chain
Long wear
TECHNICAL DATA
ANSI No: 140
Pitch: 44.45mm
Roller diameter: 25.40mm
Width between roller link plates: 25.40mm
Link plate thickness: 5.6mm
Link plate height: 42.2mm
Pin diameter: 12.71mm
Average tensile strength: 431kN
Maximum allowable load: 68.4kN
Average weight: 14.83kg/m
Number of links per unit: 80
Units: Sold per foot, available in 10 foot packs only. This chain is available to be ordered to your specified length.
