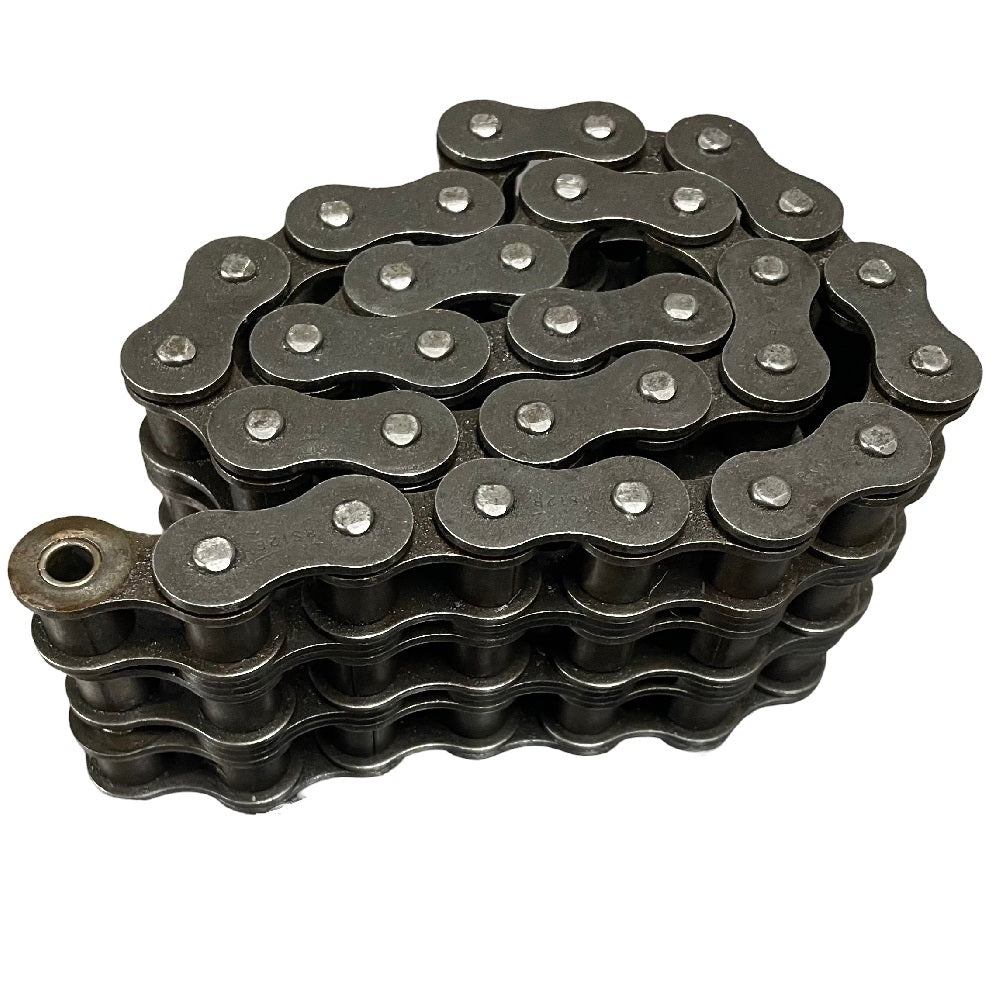

1-1/2" American standard ASA120-3 Tsubaki triple-strand roller chain

This triple-strand roller chain is designed for light industrial and agricultural uses.

This chain, connecting links and offset links is available in sizes from ASA 25 to ASA 200. Simplex, duplex and triplex executions are available.

Royce Cross Group will cut chain to your specified length for sizes up to RS16B and RS80 in Tsubaki single-strand and double-strand types.

FEATURES

• Easy handling
• Quality chain
• Long wear

TECHNICAL DATA

ANSI No: 120-3

Pitch: 38.1mm

Roller diameter: 22.23mm

Width between roller link plates: 25.4mm

Pin from pin head to CL: (L1) 70.4mm; (L2) 74.4mm

Transverse pitch: 45.4mm

Average tensile strength: 500kN

Maximum allowable load: 76kN

Average weight: 17.53kg/m

Number of links per box: 80

Box length: Sold per foot, available in 10 foot packs. This chain is available to be ordered to your specified length.
