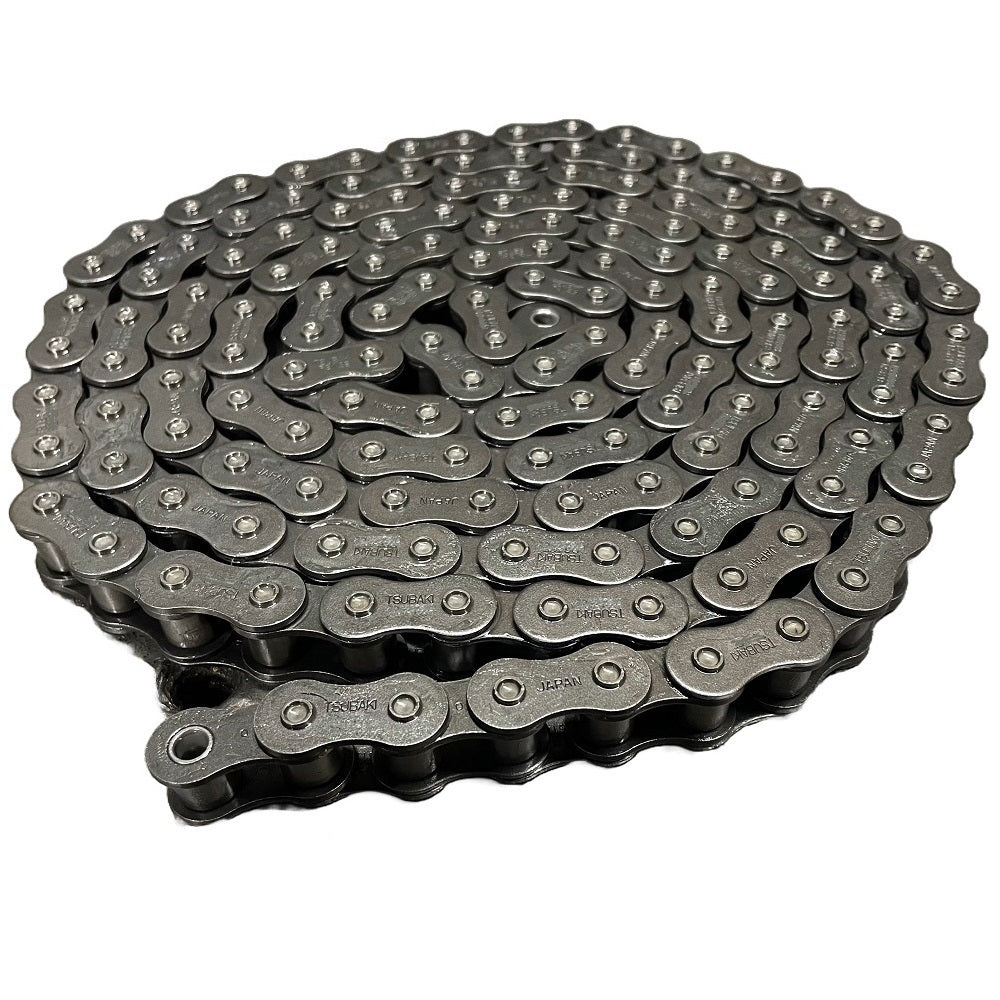

1-1/4" American standard ASA 100 HT Tsubaki heavy duty single-strand roller chain

This roller chain is designed for industrial and agricultural uses, ideal for applications that demand high tensile strength and minimal elastic elongation.

This chain, connecting links and offset links is available in sizes from ASA 40 HT to ASA 240HT.

HT series chains offer a 15–30% higher ultimate tensile strength than ANSI standard roller chains by utilising through-hardened pins and larger-sized link plates. They also deliver improved resistance to shock loading.

Royce Cross Group will cut chain to your specified length for sizes up to RS16B and RS80 in Tsubaki single-strand and double-strand types, and RS80HT in Tsubaki single-strand types.

FEATURES

Easy handling

Quality chain

Long wear

TECHNICAL DATA

ANSI No: 100HT

Pitch: 31.75mm

Roller diameter: 19.05mm

Width between roller link plates: 19.05mm

Link plate thickness: 4.8mm

Link plate height: 30.1mm

Pin diameter: 9.54mm

Average tensile strength: 142kN

Maximum allowable load: 24.5kN

Average weight: 4.58kg/m

Number of links per box: 96

Box length: Sold per foot, available in 10 foot packs only. This chain is available to be ordered to your specified length.
