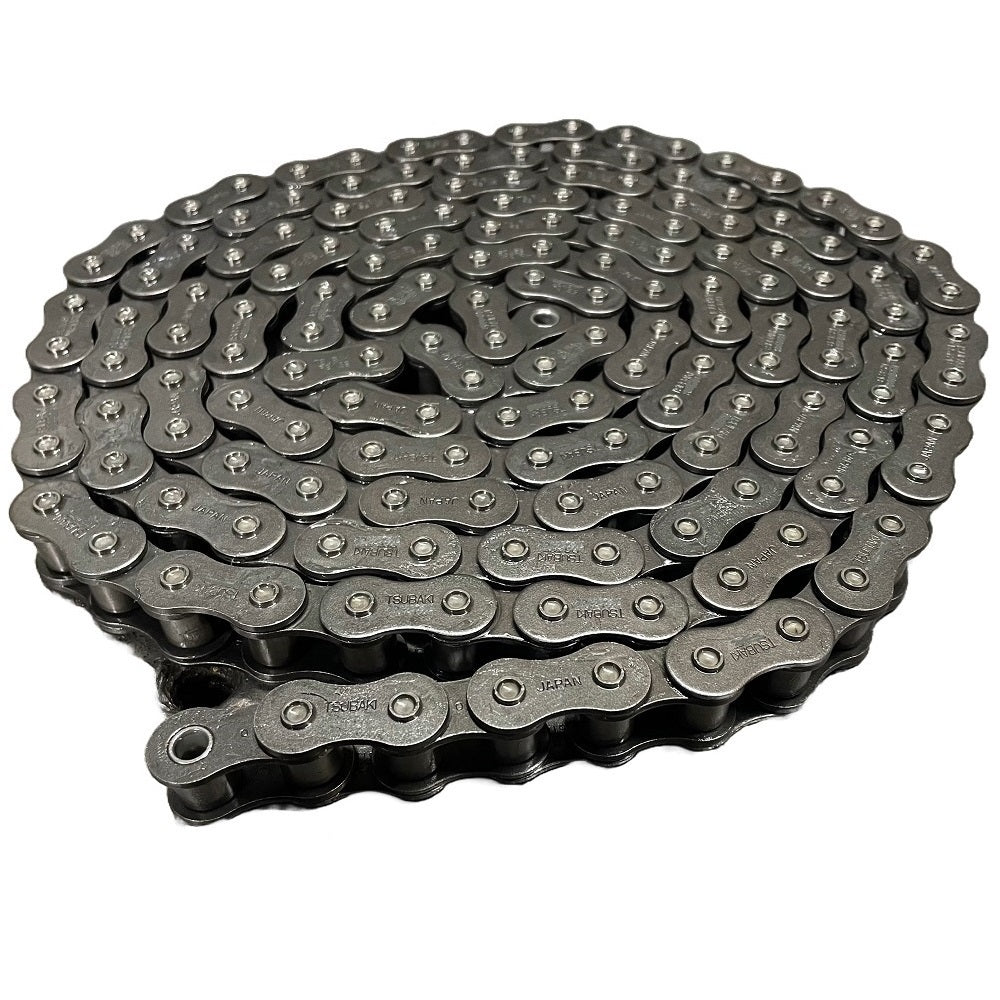

2-1/4" American standard ASA 180 Tsubaki single-strand roller chain

This single-strand roller chain is designed for light industrial and agricultural uses.

This chain, connecting links and offset links is available in sizes from ASA 25 to ASA 200. Simplex, duplex and triplex executions are available.

Royce Cross Group will cut chain to your specified length for sizes up to RS16B and RS80 in Tsubaki single-strand and double-strand types.

FEATURES

• Easy handling
• Quality chain
• Long wear

TECHNICAL DATA

ANSI No: 180

Pitch: 57.15mm

Roller diameter: 35.71mm

Width between roller link plates: 35.72mm

Link plate thickness: 7.15mm

Link plate height: 46.8mm

Pin diameter: 17.46mm

Average tensile strength: 370kN

Maximum allowable load: 60.8kN

Average weight: 13.45kg/m

Number of links per box: 54

Box length: Sold per foot, available in 10 foot packs only. This chain is available to be ordered to your specified length.
