1-1/4" pitch leaf chain - 2x2 lacing

Tsubaki's AL Series leaf chain comprises link plates with the same contour and thickness as the ANSI roller chain's pin link plates of the same pitch. The pins boast the same diameter as those of ANSI roller chains of the same pitch.

FEATURES

• Suited for use in lift trucks, counter-weights and reciprocating motion mechanisms
• Quality, Japanese-made chain

SPECIFICATIONS

Type: American Standard leaf chain - AL Series

Chain no: AL-1022

Pitch: 31.75

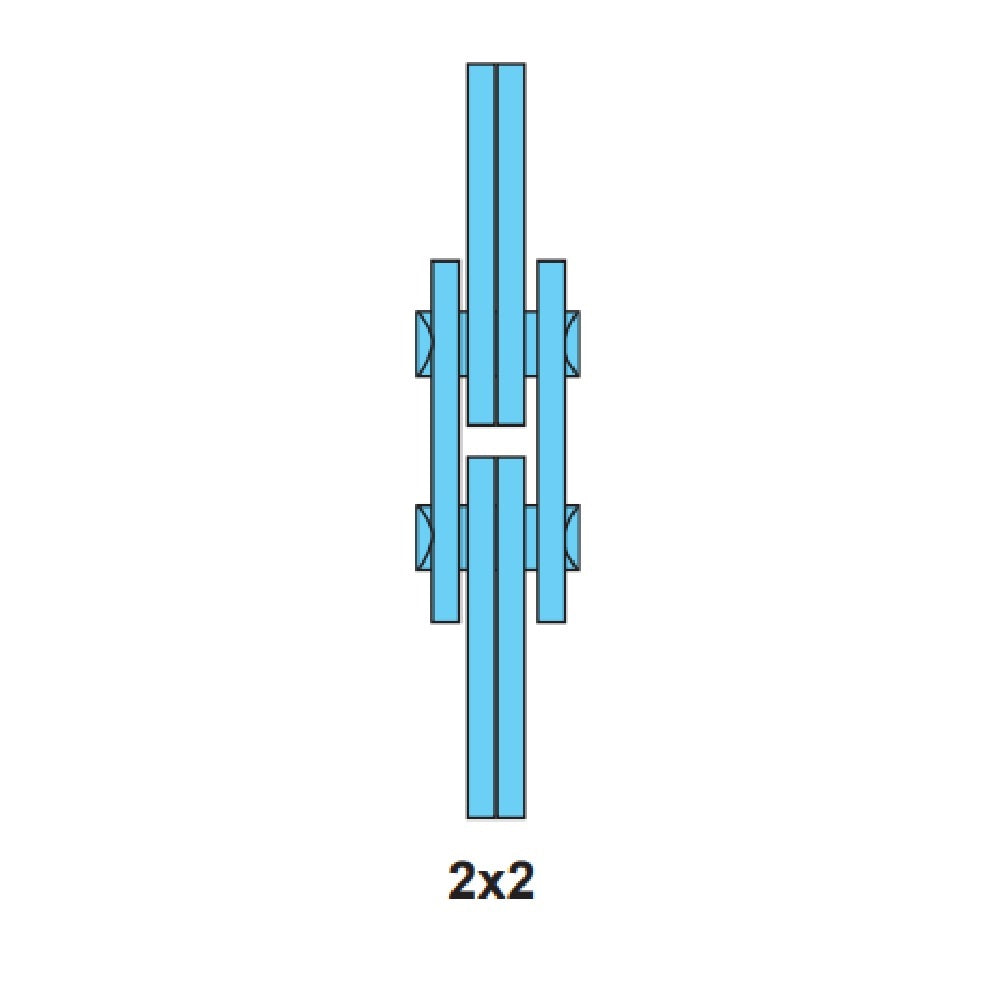

Lacing: 2 x 2

Minimum tensile strength: 98.1kN

Pin diameter: 9.48

Overall pin length: 20.05

Link plate thickness: 4.0

Link plate height: 25.0

Hole diameter: 9.57

Approximate weight: 2.69kg/m

Units: Each
