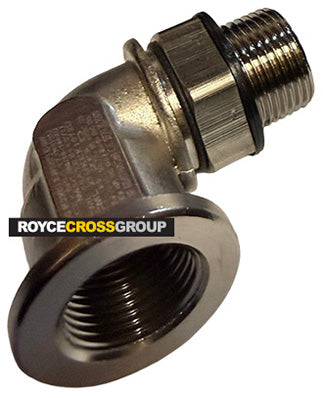

Adjustable elbow adaptor - M20(M) - M20(F)

Fitted with a silicone-ring, the adaptor can be fixed in any position around a 360-degree circle. It is supplied with a sealing gasket. It can be used in general industrial and hazardous area installations.

SPECIFICATIONS

Type: Adjustable elbow adaptor

Body and nut: Marine-grade electroless nickel-plated brass

Sealing gasket: Standard HDPE

O-ring material: Silicone

Protection: Ex db, Ex eb, Ex ta, IP65/66/68

Male thread type: M20 x 1.5

Male thread minimum length A: 17mm

Female thread type: M20 x 1.5

Female thread minimum length: 16mm

Nut hexagonal details

Maximum flats: 27mm

Maximum crns: 30.4mm

Installation torque value: 21Nm

Units: Each
