Out of stock

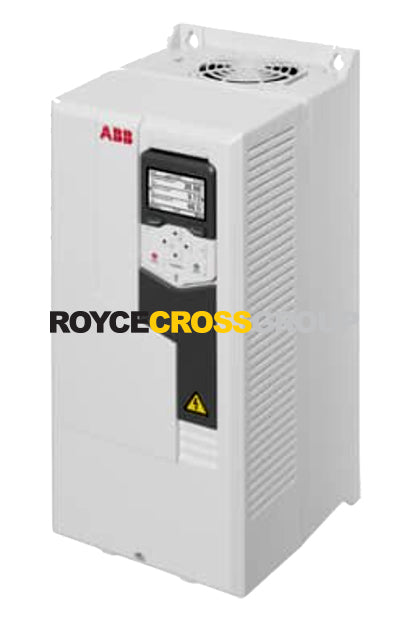

ACS580 18.5kW 415V 38A IP56 VD drive with assistant keypad
The ACS580-01 wall-mounted general-purpose drives are part of ABB's all-compatible drives portfolio, offering technically compatible drives with long-term solutions and support for users, processes, business and the environment. The expert team at Royce Cross Group can assist with finding the right drive for your application and assist in customising.
FEATURES
- Wall-mounted, drive modules and cabinet-built drives to control a variety of applications
- Easy to select, install and use
- Essential features built into drive
- Energy efficiency features
- Connectivity to most common automation networks
- Adaptive programming for fine tuning and engineering the drive functionality
- ATEX-certified thermistor relay for potentially explosive environment (dust areas in F&B)
- Comes with assistant control panel
SPECIFICATIONS
Frequency: 50/60Hz
Input voltage: 380 to 480 volts
Phases: 3
Output current - normal use: 38 amps
Output power - light-overload use: 18.5kW
Output power - normal use: 18.5kW
Protection class: IP21, EMC class C2
Height: 599mm
Length: 409mm
Width: 294mm
Weight: 17kg
Units: Each
