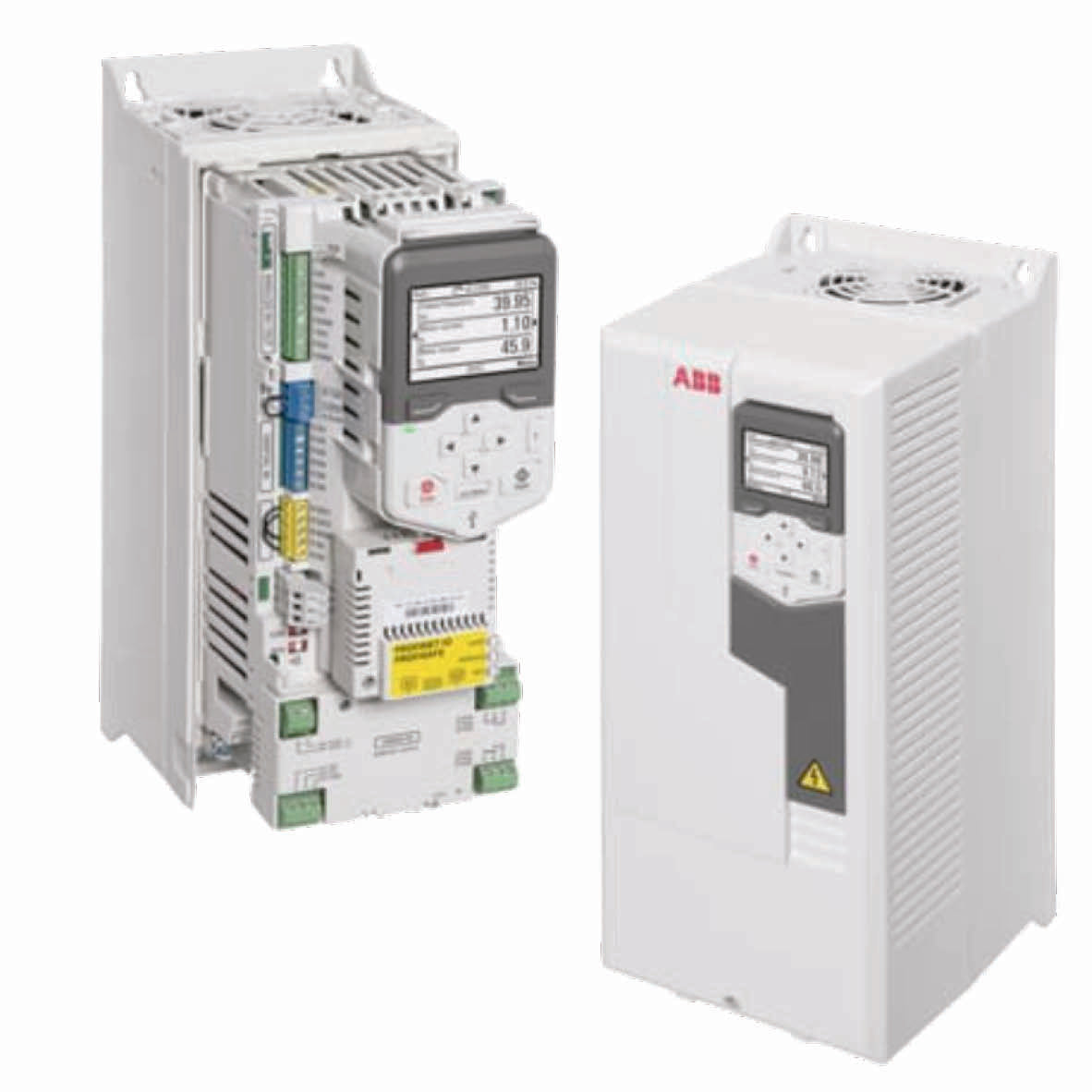

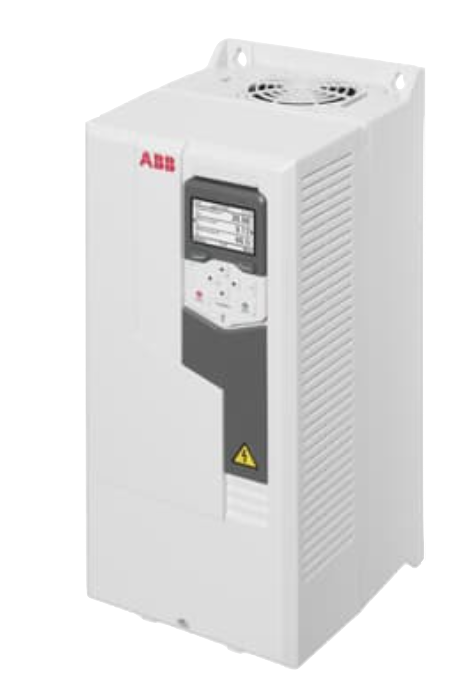

ACS580 18.5kW 415V 38A IP21 VF drive

The ACS580 wall-mounted general-purpose drives are part of ABB's all-compatible drives portfolio, offering technically compatible drives with long-term solutions and support for users, processes, business and the environment. The expert team at Royce Cross Group can assist with finding the right drive for your application and assist in customising.

FEATURES

• Wall-mounted, drive modules and cabinet-built drives to control a variety of applications
• Easy to select, install and use
• Essential features built into drive
• Energy efficiency features
• Connectivity to most common automation networks
• Adaptive programming for fine tuning and engineering the drive functionality
• ATEX-certified thermistor relay for potentially explosive environment (dust areas in F&B)
• Comes with assistant control panel

SPECIFICATIONS

Frequency: 50/60Hz

Input voltage: 380 to 480 volts

Phases: 3

Output current - normal use: 38 amps

Output power - light-overload use: 18.5kW

Output power - normal use: 18.5kW

Protection class: IP21, EMC class C2

Height: 490mm

Length: 229mm

Width: 203mm

Weight: 13.75kg

Units: Each
