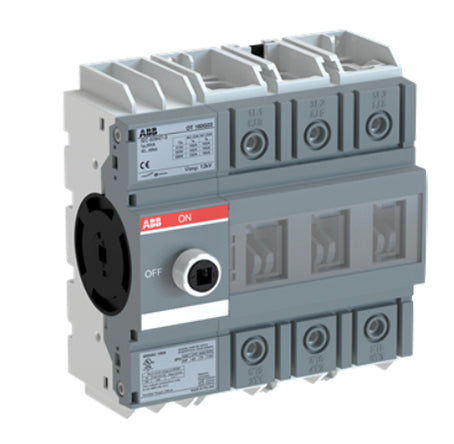

ABB load break switch - base/din mount, 160A/415V 3-pole

The three-pole front-operated, base-mounted switch disconnector boasts protected clamp terminals. The hand and shaft are not included.

FEATURES

• Three pole
• Protected clamp terminals

SPECIFICATIONS

Handle type: Handle and shaft not included

Switch's operating mechanism: Mechanism at end of the switch 03 (left side)

Distance between phases: Standard

Position of line terminals: Top in - bottom out; bottom in - top out

Operating mode: Front and side operated

Standards: IEC 60947-3/UL98/CSA C22.2 No.4

Mounting: Base

Number of poles: 3

Degree of protection: Front IP20

Terminal type: Screw terminals

Width: 123mm

Height: 130mm

Depth/width: 73mm

Weight: 0.8kg

Units: Each
