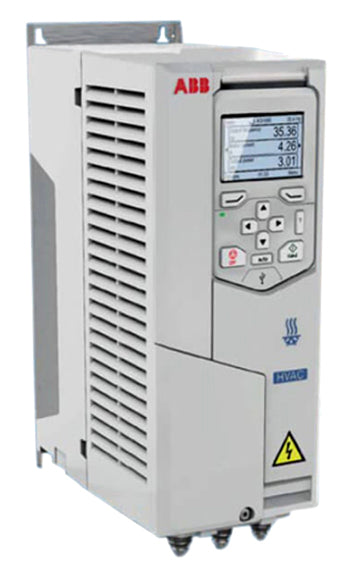

ABB HVAC VFD IP55 37kW 73A 400V with assistant control panel

The HVAC ultra-low harmonic drives from ABB are designed with built-in harmonic avoidance systems. They meet low harmonic limit recommendations from IEEE519 and G5/5.

ACH580 drives are ideal for HVAC fans, pumps, compressors, air-handling units and chillers used in hospitals, data centres, shopping centres, tunnel ventilation, factories, office buildings and more.

The ACH-580-01 wall-mounted drives are available in IP21/UL (NEMA) type 1 to IP55/UL (NEMA) type 12 protection class with a power range up to 250kW/350hp.

The IP55/UL (NEMA) type 12 variants are designed for applications exposed to dust, moisture, vibration and other harsh conditions.

FEATURES

• Simple to select, install and use
• Intuitive control panel
• Safe maintenance
• Six-pulse drive
• Includes second-generation swinging choke for harmonic mitigation

SPECIFICATIONS

Voltage: 400 volts
