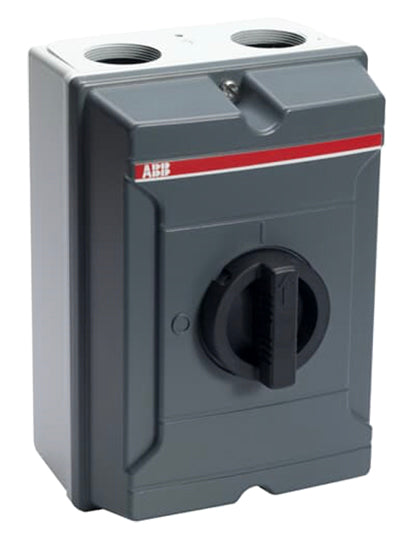

ABB enclosed safety switch isolator - 3p, 400V/90A/45kW, AC23, IP65, interlocked cover

Extremely rigid and well suited for harsh environments, ABB's dye-casted aluminium alloy enclosure boasts a polyester coated surface that is well protected from corrosion. Easy access to terminals, screwed cover and grommet-type glands make installation easy. The cover is interlocked and the handle padlockable with two padlocks. The handle also can be padlocked in the On position by removing two small plastic bits. N and PE terminals are included.

FEATURES

• Easy installation
• Black round handle
• Interlocked cover

SPECIFICATIONS

Handle colour: Black

Handle type: Round handle

Standards: IEC 60947-3

Number of poles: 3

Enclosure material: Aluminium

Width: 160mm

Height: 230mm

Depth/length: 118mm

Weight: 1.75kg

Units: Each
