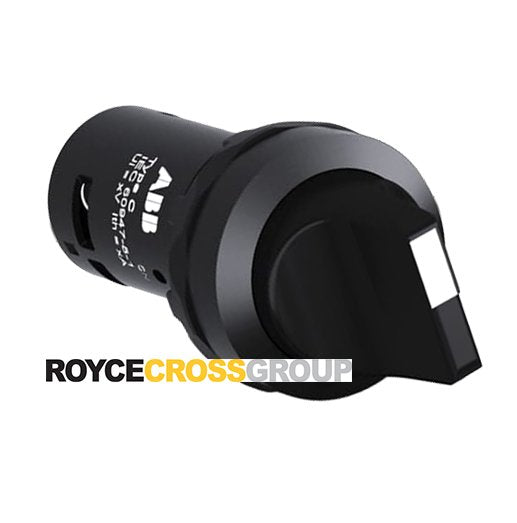

Compact selector switch - short handle, three positions

ABB's short-handle compact selector switch boasts three positions. The non-illuminated black selector switch boasts IP20 and IP65 protection for durability. It also has a wide voltage range of 24 to 300 volts.

SPECIFICATIONS

Type: Selector switch

Actuator type: Short handle

Colour: Black

Terminal type: Screw

Positions: Three fixed - A&B&C

Contact configuration: 2NO

Auxiliary contacts: Two

Current rating: 0.2 amps

Frequency rating: 50/60Hz

Impulse withstand voltage rating: 6kV

Insulation voltage rating: 300 volts

Operational current rating: 0.2 amps, 0.3 amps, 1 amp

Operational voltage rating: 300 VAC/DC

Voltage rating: 24 to 300 volts

Tightening torque: 0.8 N-m

Bezel material: Plastic

Bezel type: Black plastic

Illumination: Non

NEMA rating: 1, 12, 13, 3, 3R, 4, 4X

Width: 30mm

Height: 30mm

Depth: 72mm

Protection rating: IP20, IP65

Weight: 0.024kg

Units: Each
