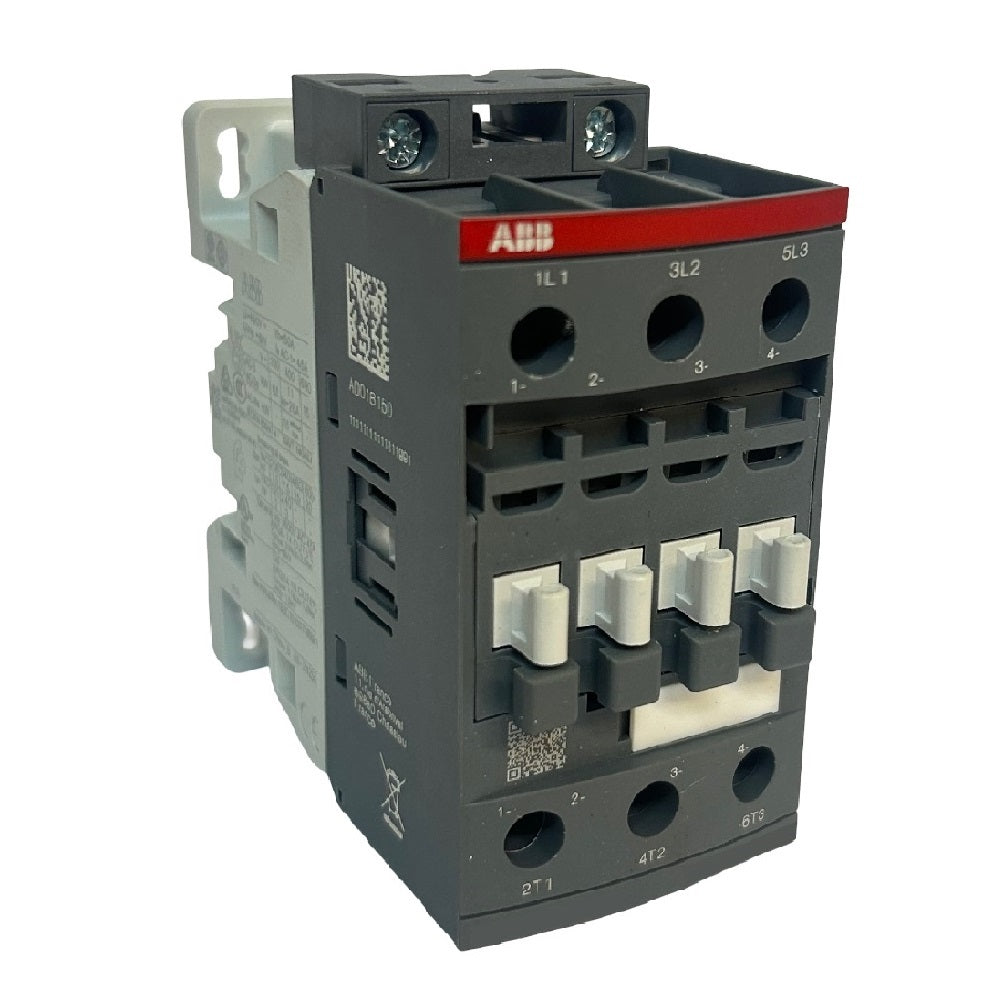

AF65 3-pole 30kW contactor - screw DIN rail panel mount

With an IP10 protection rating, ABB's AF65 contactor is suitable for DIN rail and panel mounting. It has screw terminals for secure connections. The compact contactor supports a three normally open (3NO) contact configuration.

It is important to choose the correct contactor to ensure reliable performance and safety.

SPECIFICATIONS

Height: 125.5mm

Depth: 111mm

Width: 55mm

Terminal type: Screw

Contact configuration: 3NO

Mounting type: DIN rail, panel

Poles: 3

Rated current: 105 amps

Rated frequency: 50/60Hz

Rated insulation voltage: 690 volts

Rated power: 30kW

Rated voltage: 24 to 60 VDC

Protection: IP10

Units: Each
