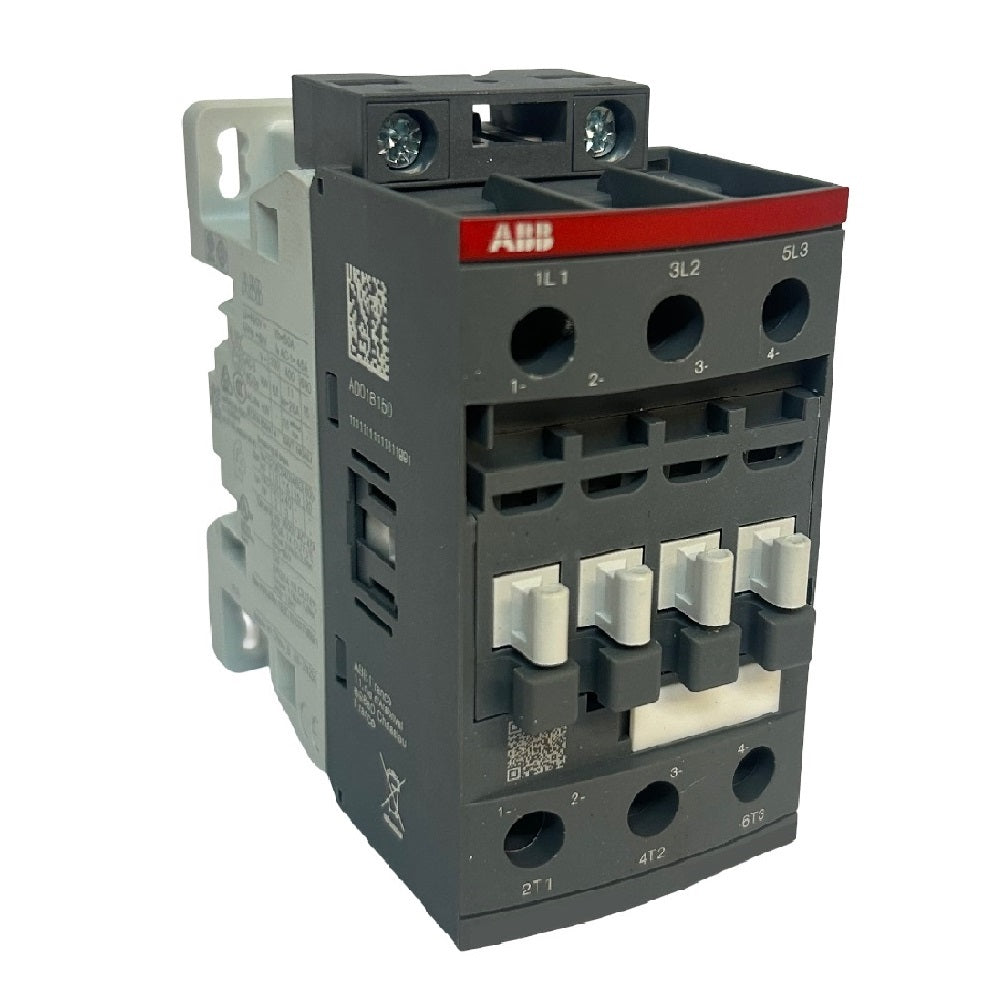

AF 3-pole 30kW contactor - screw DIN rail panel mount

With an IP10 protection rating, ABB's AF contactor is suitable for DIN rail and panel mounting. The compact contactor supports a three normally open (3NO) contact configuration.

It is important to choose the correct contactor to ensure reliable performance and safety.

SPECIFICATIONS

Height: 125.5mm

Depth: 111mm

Width: 55mm

Terminal type: Screw

Contact configuration: 3NO

Mounting type: DIN rail, panel

Poles: 3

Rated current: 105 amps

Rated frequency: 50/60Hz

Rated insulation voltage: 690 volts

Rated power: 30kW

Rated voltage: 24 to 60 VDC

Protection: IP10

Units: Each
