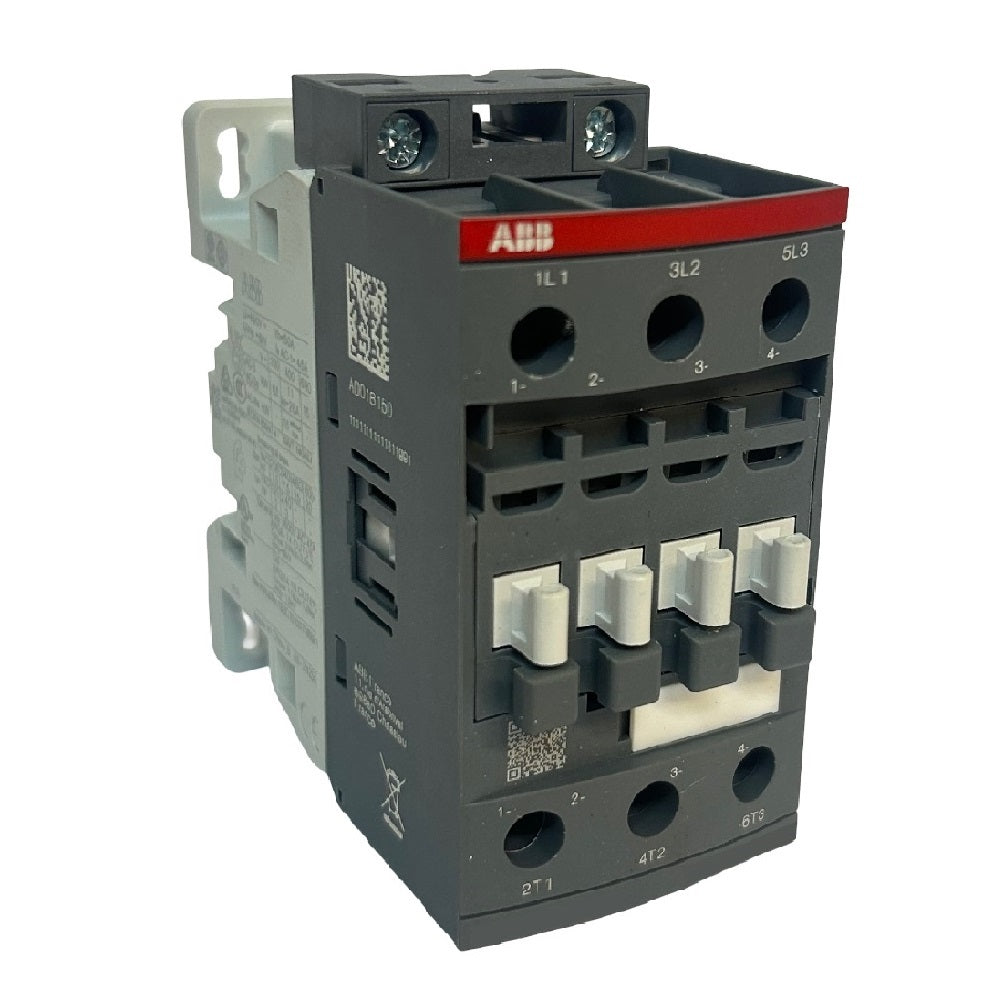

AF 3-pole contactor - 22kW, 100 amp, DIN rail, panel mount

Suitable for mounting on DIN rail or a panel, the ABB compact contactor boasts a three normally open (3NO) contact configuration.

It is important to choose the correct connector for each application.

SPECIFICATIONS

Height: 125.5mm

Depth: 111mm

Width: 55mm

Mounting type: DIN rail, panel

Terminal type: Screw

Rated current: 100 amps

Rated frequency: 50/60Hz

Rated insulation voltage: 690 volts

Rated voltage: 690 VAC

Rated power: 22kW

Poles: 3

Contact configuration: 3NO

Protection rating: IP10

Units: Each
