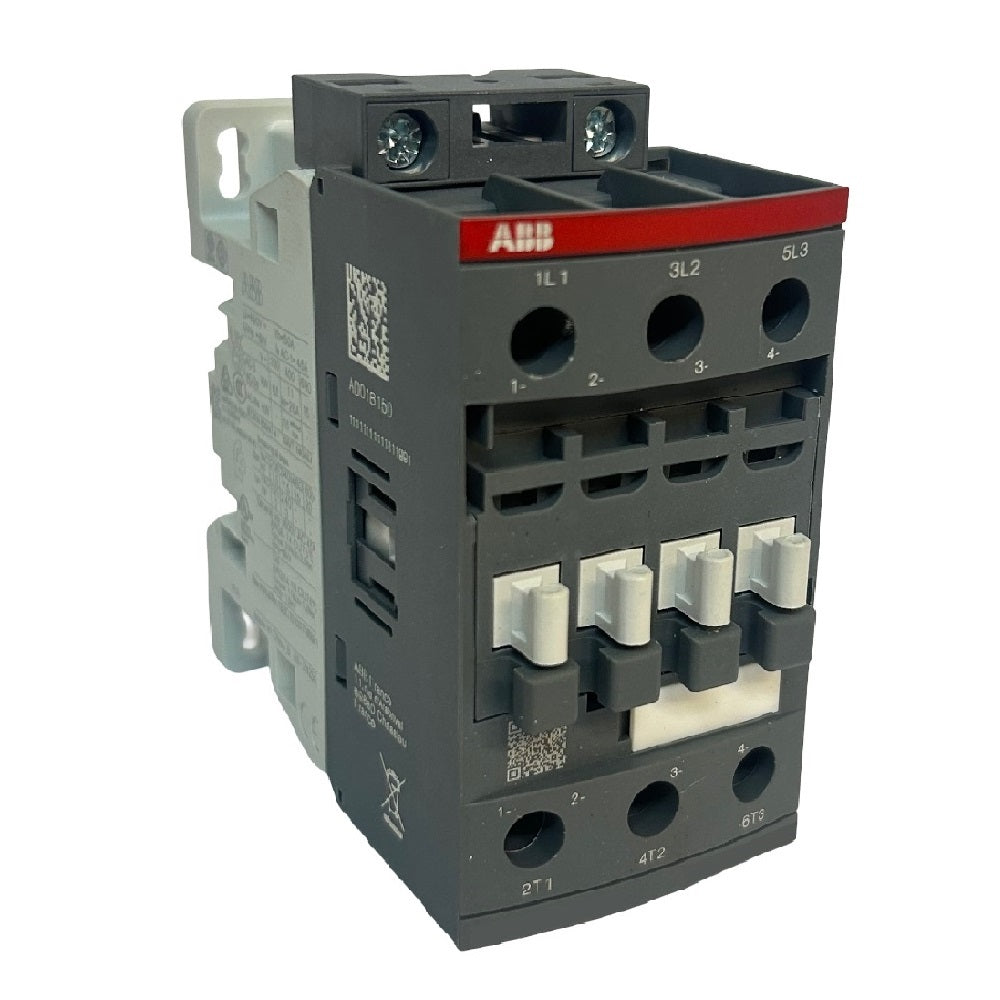

AF40 three-pole contactor - 18.5kW, 70 amp, screw DIN rail, panel mount

Featuring IP10 protection rating, ABB's AF contactor supports DIN rail and panel mounting. It is suitable for 690 VAC and 70-amp applications. It has a four normally open (4NO) contact configuration.

It is important to select the correct contactor for each application.

SPECIFICATIONS

Type: Contactor

Mounting type: Panel, DIN rail

Poles: 3

Contact configuration: 4NO

Current rating: 70 amps

Frequency rating: 50/60Hz

Insulation voltage rating: 690 volts

Power rating: 18.5kW

Voltage rating: 690 VAC

Short circuit protective devices: 800 amps, fuse type gG

Terminal type: Screw

Height: 125.5mm

Width: 55mm

Depth: 113mm

Standards: UL, CE, RoHS, REACH

Protection rating: IP10, IP20

Units: Each
