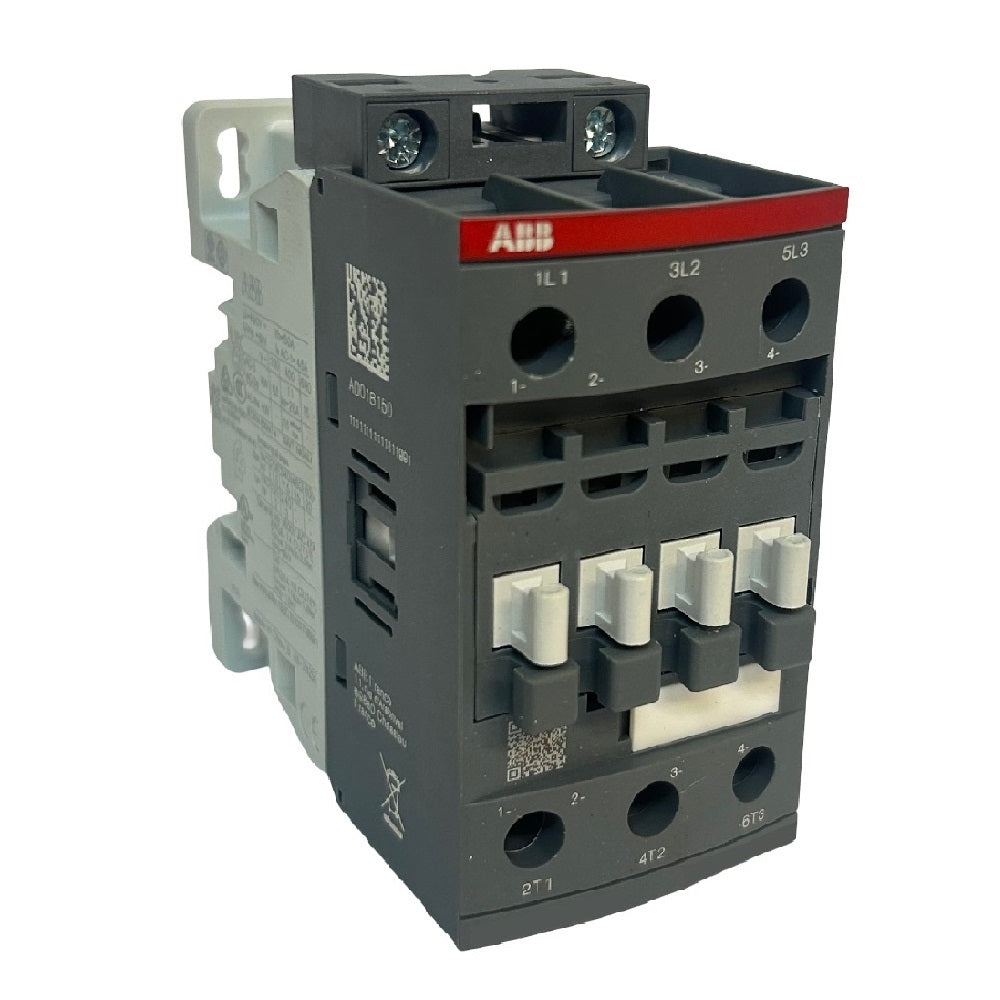

AF three-pole contactor - 3NO, 50-amp, screw din rail, panel mount
Boasting a three normally open (3NO) contact configuration, ABB's AF contactor is suitable for a rated voltage range of 24 to 60 VAC. It features easy installation on DIN rail or panel mounting.
It is important to choose the correct contactor for your specific application.
SPECIFICATIONS
Type: Contactor
Poles: 3
Contact configuration: 3NO
Mounting type: DIN rail, panel
Frequency rating: 50/60Hz
Insulation voltage rating: 690 volts
Power rating: 15kW
Voltage rating: 24 to 60 VAC
Current rating: 50 amps
Terminal type: Screw
Height: 86mm
Width: 45mm
Depth: 86mm
Protection rating: IP20
Units: Each
