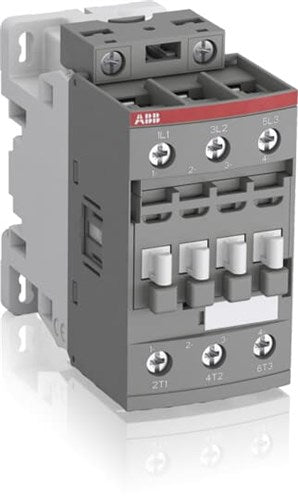

AF26 contactor - 3-pole, 690VAC, main circuit screw mount

With an IP20 protection rating for safety, ABB's compact AF26 contactor is suitable for 690 volts of alternating current (VAC) and handles currents up to 45 amps. It complies with IEC/EBN standards.

It is important to choose the correct contactor for your specific applications.

SPECIFICATIONS

Poles: 3

Clamp type: Screw terminals

Mounting type: Screw

Terminal type: Screw

Contact configuration: 3NO

Current rating: 32 amps, 40 amps, 45 amps

Frequency rating: 50/60Hz

Insulation voltage rating: 690 VAC, 600 volts

Voltage rating: 690 VAC

Rated short time withstand current: 10 sec 350A, 15 min 50 A, 1 min 150 A, 1 sec 700 A, 30 sec 225 A

Wire stripping length: 10mm control circuit, 14mm main circuit

Depth: 86mm

Height: 86mm

Width: 45mm

Protection rating: IP20

Standards and approvals: IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1

Units: Each
