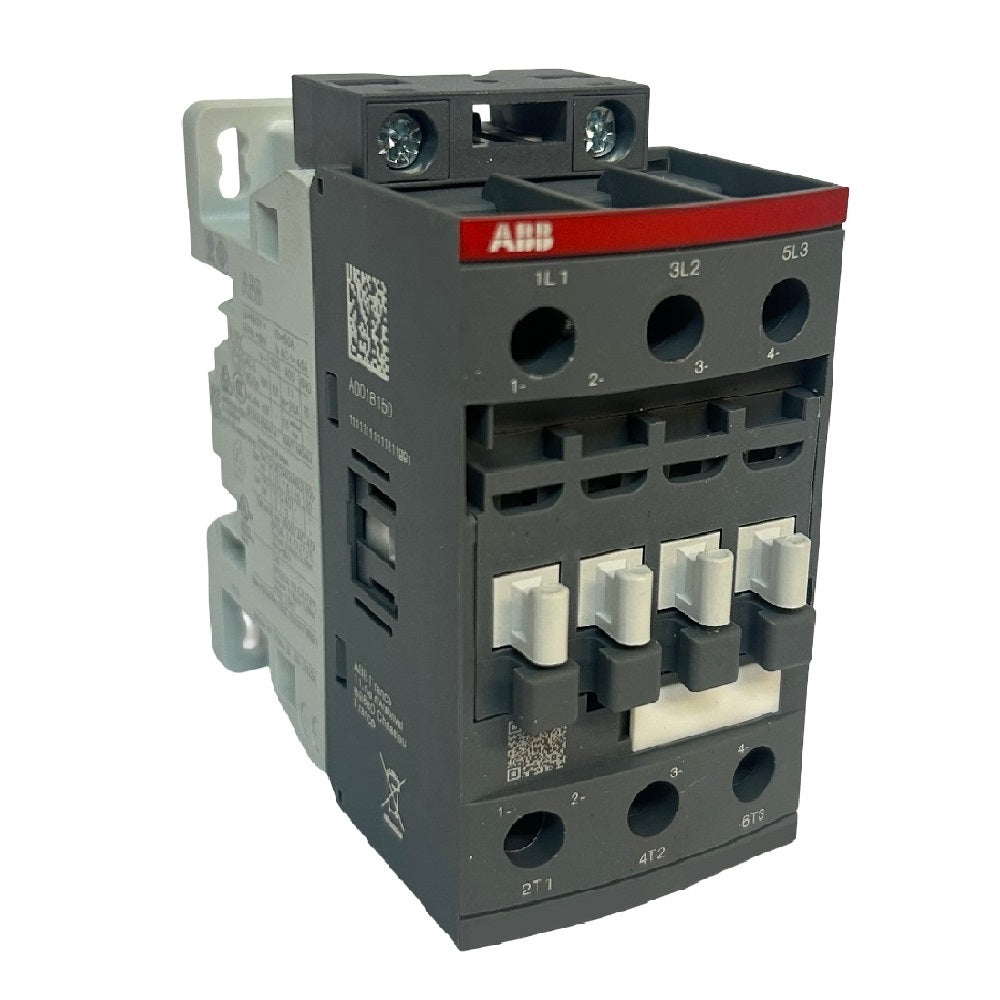

AF contactor - 3-pole, 3NO, 45 amps, 11kW screw DIN rail panel mount

Conforming to IEC/EN and UL standards, ABB's compact contractor boasts a 45-amp current rating and operates on 24 to 60 VAC and 50/60Hz. It is suitable for DIN rail or panel mounting. It is important to choose the correct contactor for your specific application.

SPECIFICATIONS

Contact configuration: 3NO

Poles: 3

Mounting type: DIN rail, panel

Terminal type: Screw

Current rating: 45 amps

Frequency rating: 50/60Hz

Insulation voltage rating: 690 volts

Power rating: 11kW

Voltage rating: 24 to 60 VAC, 20 to 60 VDC

Depth: 86mm

Height: 86mm

Width: 45mm

Standards and approvals: IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1

Protection rating: IP20

Units: Each
