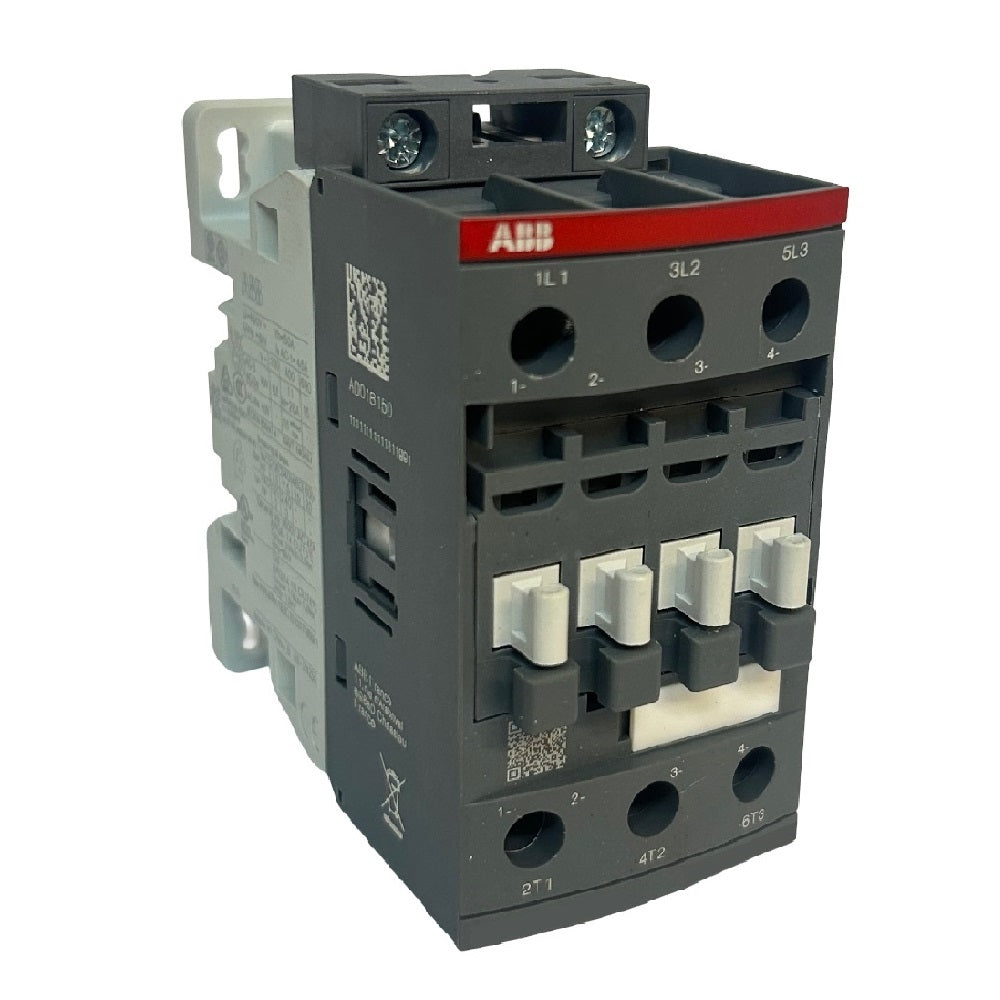

AF contactor - 3-pole, 3NO, 45 amp, 11kW screw DIN rail panel mount

With IP20 protection for safety, ABB's contactor is suitable for 100 to 250 VAC applications and handles up to 45 amp current. It operates at 50/60Hz frequency.

It is important to choose the correct contactor for your specific application.

SPECIFICATIONS

Type: Contactor

Contact configuration: 3NO

Poles: 3

Mounting type: DIN rail, panel

Terminal type: Screw

Current rating: 45 amps

Frequency rating: 50/60Hz

Insulation voltage rating: 690 volts

Power rating: 11kW

Voltage rating: 100 to 250 VAC

Depth: 86mm

Height: 86mm

Width: 45mm

Standards and approvals: IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1

Protection rating: IP20

Units: Each
