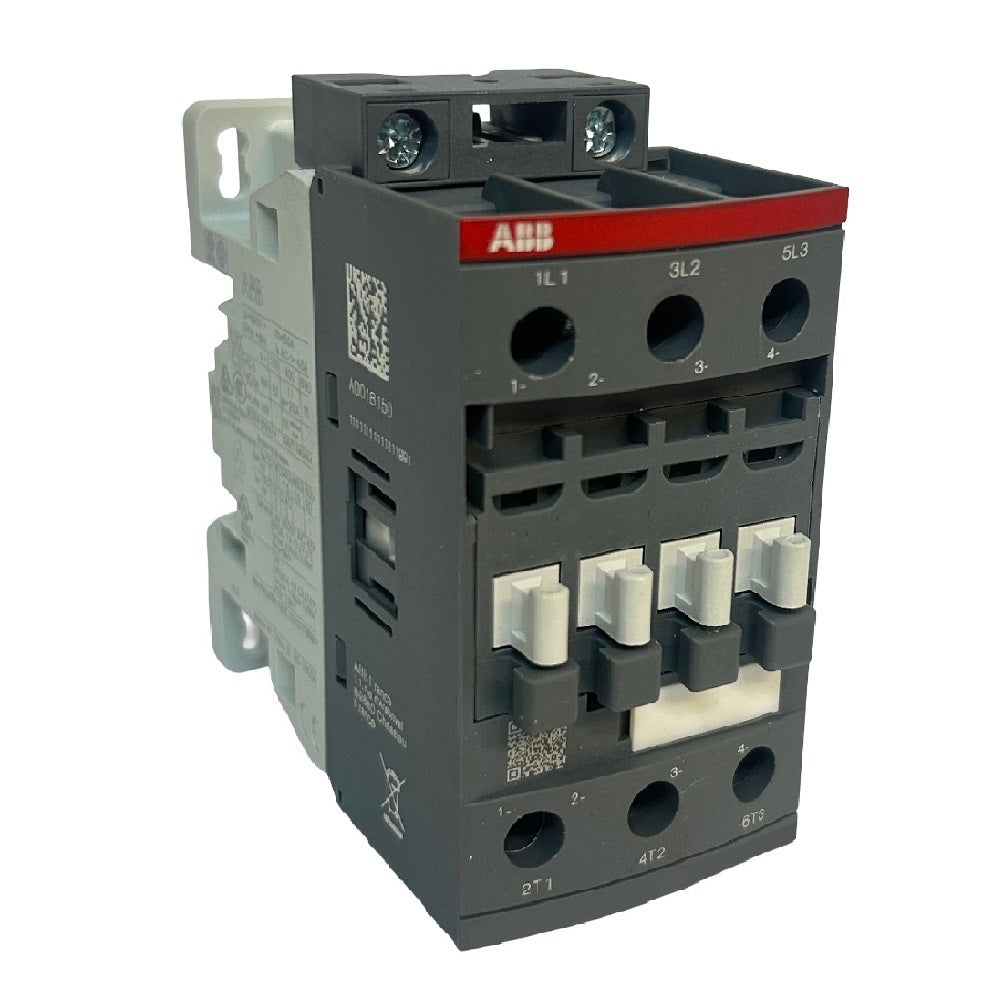

AF contactor - 3-pole, 30 amps, 26 amps, 690 VAC, main circuit screw mount

Complying with IEC/EN, UL and CSA standards, ABB's compact AF contactor supports up to 690 VAC and 30 ampls. It boasts an IP20 protection for safety and screw terminal for secure mounting.

It is important to choose the correct contactor for your specific application.

SPECIFICATIONS

Type: Contactor

Contact configuration: 3NO

Mounting type: Screw

Terminal type: Screw

Poles: 3

Current rating: 30 amps, 26 amps

Frequency rating: 50/60Hz

Insulation voltage rating: 690 VAC, 600 volts

Short time withstand current: 10 sec 350A, 15 min 50 A, 1 min 150 A, 1 sec 700 A, 30 sec 225 A

Voltage rating: 690 VAC

Depth: 77mm

Height: 86mm

Width: 45mm

Wire stripping length: 10mm

Protection rating: IP20

Standards and approvals: IEC/EN 60947-1, IEC?EN 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1
