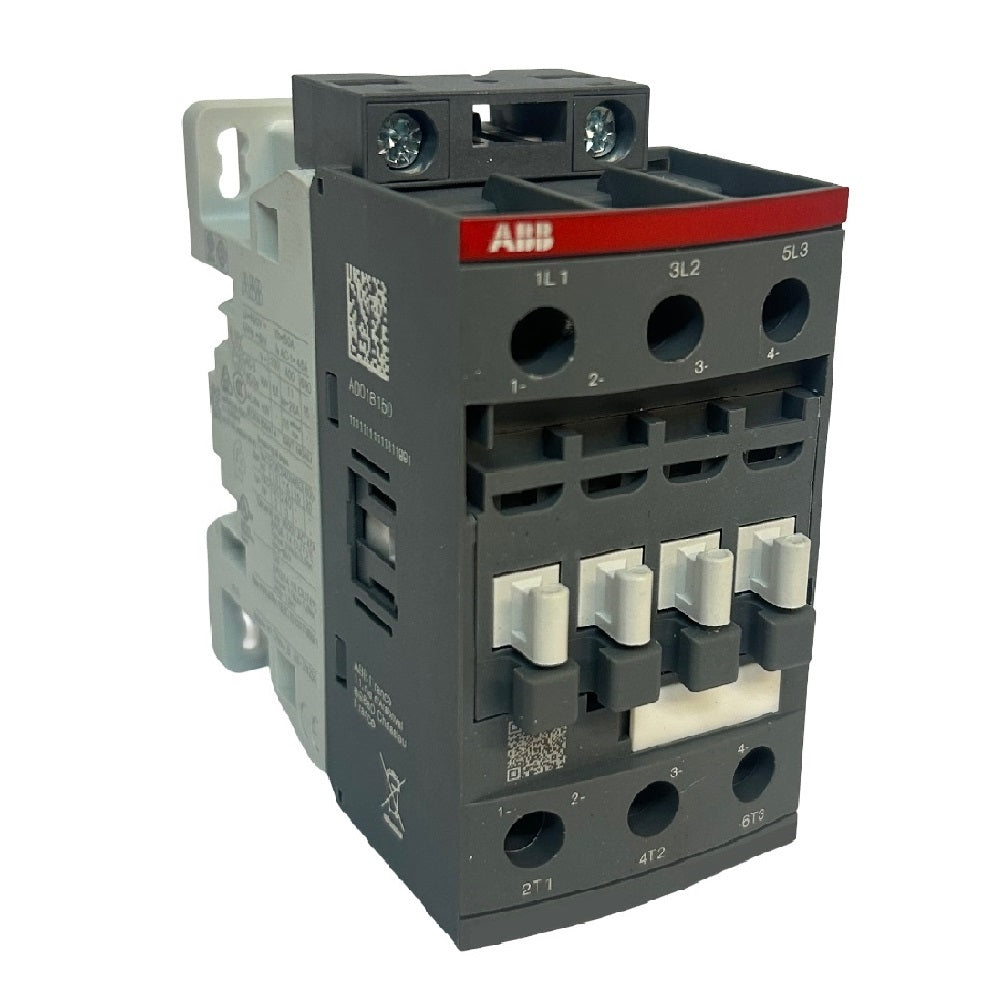

AF contactor - 3-pole, 3NO, 30 amp 7.kW screw DIN rail, panel mount

Complyign with IEC/EN and UL standards, ABB's compact AF contactor offers DIn rail or panel mount options. It has a voltage range rating of 24 to 60 VAC and handles current up to 30 amps.

It is important to choose the correct contactor for your specific application.

SPECIFICATIONS

Type: Contactor

Contact configuration: 3NO

Poles: 3

Mounting type: DIN rail, panel

Terminal type: Screw

Current rating: 30 amps

Frequency rating: 50/60Hz

Insulation voltage rating: 690 volts

Power rating: 7.5kW

Voltage rating: 24 to 60 VAC

Depth: 77mm

Height: 86mm

Width: 45mm

Protecton rating: IP20, IP40

Standards and approvals: IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1

Units: Each
