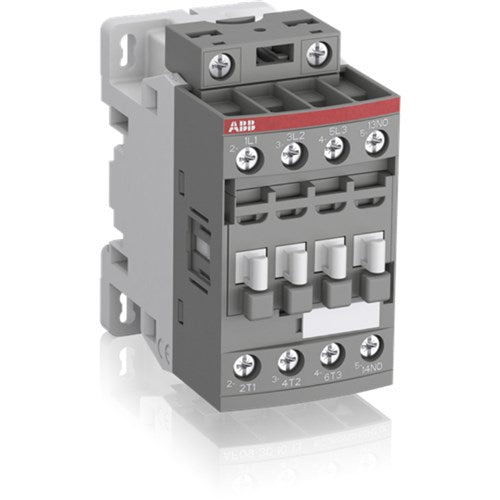

AF contactor - 3-pole, 3NO, 30 amps, 7.5kW screw DIN rail, panel mount
Complying with IEC/EN and UL standards, ABB's AG contactor boasts Ip20 and IP40 protection for safety. It features DIn rail and panel mounting options.
It is important to choose the correct contactor for your specific application.
SPECIFICATIONS
Type: Contactor
Contact configuration: 3NO
Poles: 3
Mounting type: DIN rail, panel
Terminal type: Screw
Current rating: 30 amps
Frequency rating: 50/60Hz
Insulated voltage rating: 690 volts
Power rating: 7.5kW
Voltage rating: 690 VAC
Depth: 77mm
Height: 86mm
Width: 45mm
Protection rating: IP20, IP40
Standards and approvals: IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1
Units: Each
