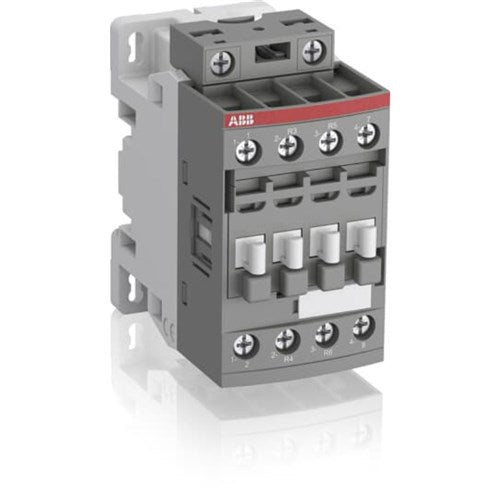

AF contactor - 4-pole, 2NO+2NC, 30 amp, 7.5kW, screw DIN rail, panel mount
Complying with IEC, UL and CSA standards, this ABB contactor offers IP20 protection for safety. It handles 24 to 60 VAC and 30 amps with ease.
It is important to choose the correct contactor for your specific application.
SPECIFICATIONS
Type: Contactor
Contact configuration: 2NO+2NC
Poles: 4
Mounting type: DIN rail, panel
Terminal type: Screw
Current rating: 30 amps
Frequency rating: 50/60Hz
Insulated voltage rating: 690 volts
Power rating: 7.5kW
Voltage rating: 24 to 60 VAC
Depth: 77mm
Height: 86mm
Width: 45mm
Protection rating: IP20
Standards and approvals: IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No 60335-2-40 LZGH2 A2L, CAN/CSA C22.2 No 60947-1, CAN/CSA C22.2 No 60947-4-1
Units: Each
