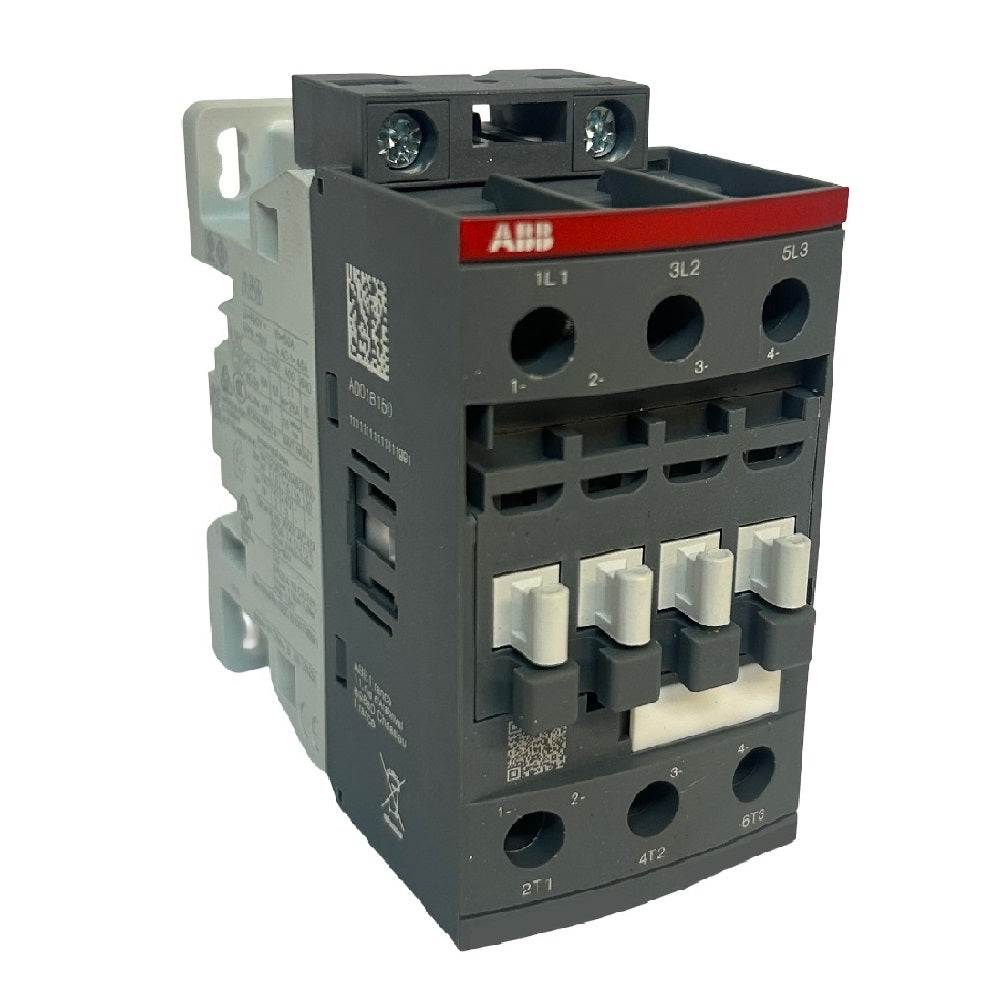

AF contactor - 3-pole, 25amp/22amp, 690VAC main circuit screw mount

With surge protection built in, this is a three-pole ABB AF contactor boasts IP20 protection for safety. It comprises a three normally open (3NO) contact configuration and a rated voltage of 690 VAC.

ABB's AF contactors, which feature a block-type design, can be extended easily with add-on auxiliary contact blocks and an additional wide range of accessories.

It is important to choose the correct contactor for your specific application.

SPECIFICATIONS

Type: AF contactor

Contact configuration: 3NO

Poles: 3

Clamp type: Screw terminals

Mounting type: Screw

Terminal type: Screw

Current rating: 25 amps, 22 amps

Frequency rating: 50/60Hz

Insulation voltage: 690 VAC, 600 volts

Short time withstand current rating: 10 sec 350 A, 15 min 50 A, 1 min 150 A, 1 sec 700 A, 30 sec 225 A

Tightening torque: 1.2 N-m auxiliary circuit/control circuit, 1.5 N-m main circuit

Voltage rating: 690 VAC

Wire stripping length: 10mm

Protection rating: IP20

Depth: 77mm

Height: 86mm

Width: 45mm

Standards and approvals: IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1

Units: Each
