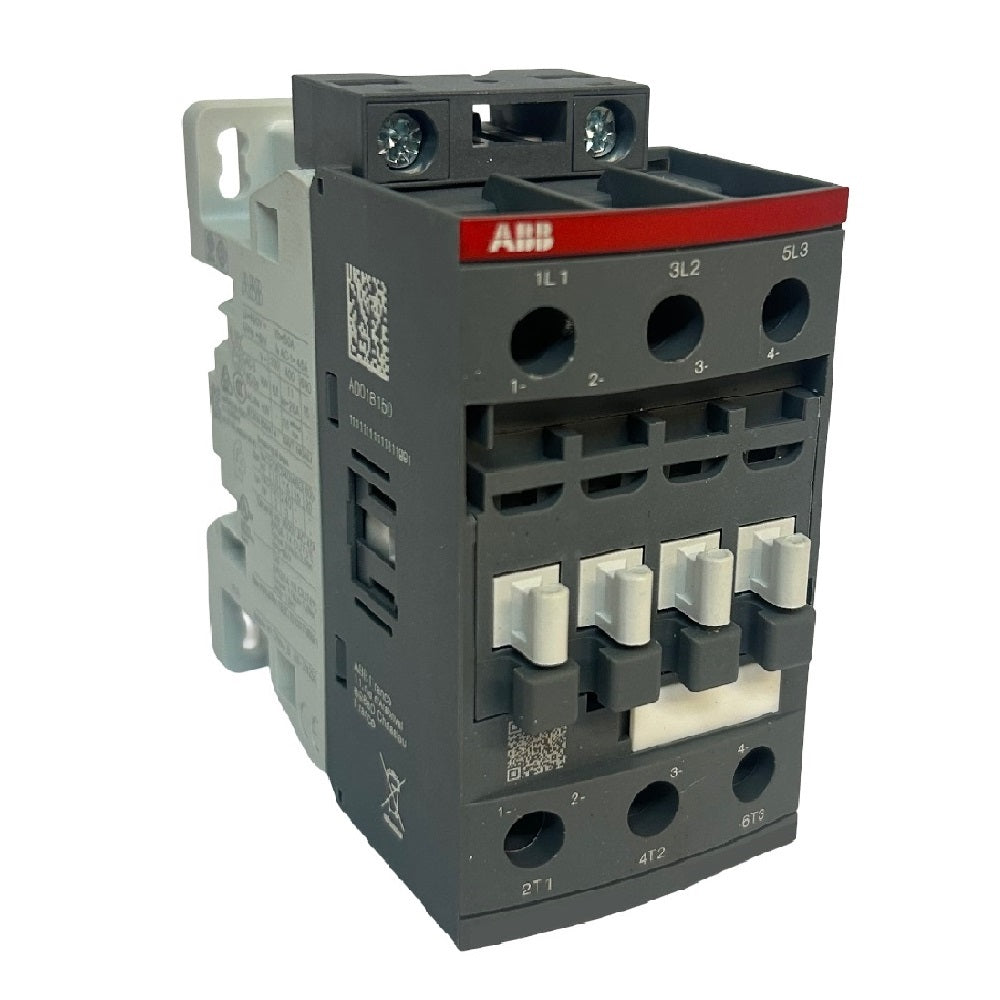

AF contactor - 3-pole, 3NO, 25amp, 4kW, 690VAC screw DIN rail, panel mount

With surge protection built in, this is a three-pole ABB AF contactor boasts IP20 and IP40 protection for safety. It comprises a three normally open (3NO) contact configuration and a rated voltage of 690 VAC.

Used for controlling power circuits up to 690 volts AC and 220 volts DC, AF09 contactors are mainly used for controlling three-phase motors, non-inductive or slightly inductive loads.

ABB's AF contactors, which feature a block-type design, can be extended easily with add-on auxiliary contact blocks and an additional wide range of accessories.

It is important to choose the correct contactor for your specific application.

SPECIFICATIONS

Type: AF09 contactor

Contact configuration: 3NO

Poles: 3

Mounting type: DIN rail, panel

Terminal type: Screw

Current rating: 25 amps

Frequency rating: 50/60Hz

Insulation voltage: 690 volts

Short time withstand current rating: 10 sec 350 A, 15 min 50 A, 1 min 150 A, 1 sec 700 A, 30 sec 225 A

Tightening torque: 1.2 N-m auxiliary circuit/control circuit, 1.5 N-m main circuit

Voltage rating: 690 VAC

Power rating: 4kW

Wire stripping length: 10mm

Protection rating: IP20, IP40

Depth: 77mm

Height: 86mm

Width: 45mm

Standards and approvals: IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH A2L, UL 60947-4-1, CSA C22.2 No 60335-2-40 LZGH2 A2L, CSA C22.2 No 60947-4-1

Units: Each
