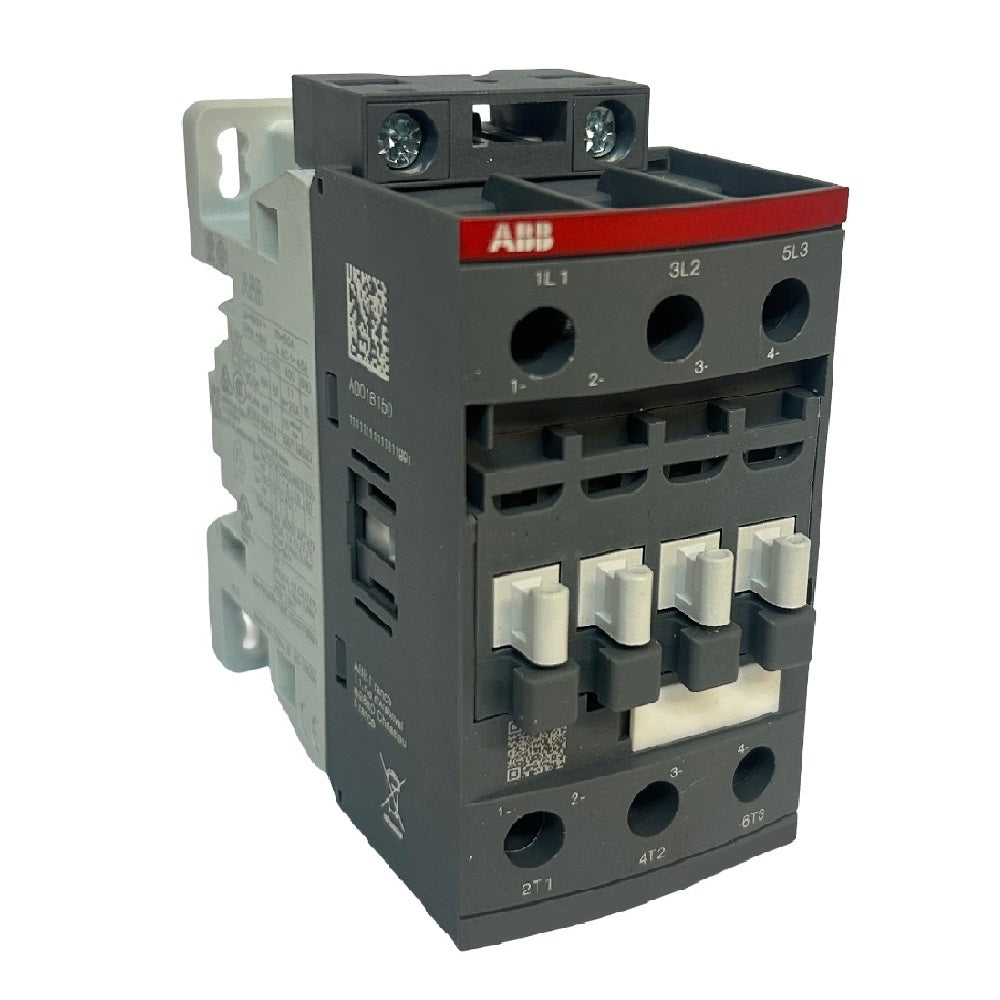

AF contactor - 3-pole, 3NO, 25amp, 4kW, 690VAC screw DIN rail, panel mount

With surge protection built in, this is a three-pole ABB AF contactor complies with IEC/EN and UL standards. It comprises a three normally open (3NO) contact configuration and is suitable for 690 VAC systems.

Used for controlling power circuits up to 690 volts AC and 220 volts DC, AF09 contactors are mainly used for controlling three-phase motors, non-inductive or slightly inductive loads.

ABB's AF contactors, which feature a block-type design, can be extended easily with add-on auxiliary contact blocks and an additional wide range of accessories.

It is important to choose the correct contactor for your specific application.

SPECIFICATIONS

Type: AF09 contactor

Contact configuration: 3NO

Poles: 3

Mounting type: DIN rail, panel

Clamp type: Screw terminals

Terminal type: Screw

Current rating: 25 amps

Frequency rating: 50/60Hz

Insulation voltage rating: 690 VAC

Voltage rating: 690 VAC

Power rating: 4kW

Wire stripping length: 10mm

Protection rating: IP20, IP40

Depth: 77mm

Height: 86mm

Width: 45mm

Standards and approvals: IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No 60335-2-40 LZGH2 A2L, CSA C22.2 No 60947-4-1

Units: Each
