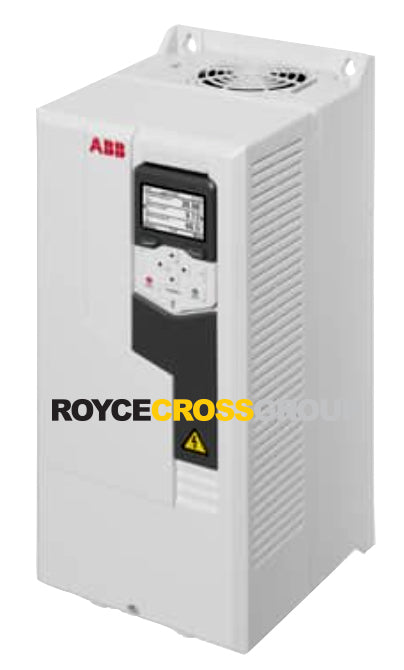

ABB ACS580 3kW 4.1A 400V VF drive IP21 R1 with assistant control panel

The ACS580 general-purpose drives are part of ABB's all-compatible drives portfolio, offering technically compatible drives with long-term solutions and support for users, processes, business and the environment. The expert team at Royce Cross Group can assist with finding the right drive for your application and assist in customising.

FEATURES

• Wall-mounted, drive modules and cabinet-built drives to control a variety of applications
• Easy to select, install and use
• Essential features built into drive
• Energy efficiency features
• Connectivity to most common automation networks
• Adaptive programming for fine tuning and engineering the drive functionality
• ATEX-certified thermistor relay for potentially explosive environment (dust areas in F&B)

SPECIFICATIONS

Frequency: 50/60Hz

Input voltage: 380 to 580 volts

Phases: 3

Output current - normal use: 7.2 amps

Output power - light-overload use: 3kW

Output power - normal use: 3kW

Protection class: IP21, EMC class C2

Mounting type: Wall-mounted

Height: 373mm

Length: 223mm

Width: 125mm

Weight: 5.7kg

Units: Each
