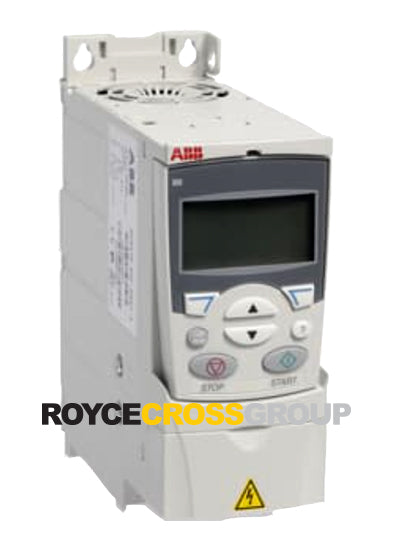

ABB VF 1.5kW 415V IP20 drive

Improve energy efficiency with ABB's variable frequency drives. The ACS 310 drives are designed for squared torque applications, such as pumps and fans, without overload demands.

FEATURES

• Energy efficient
• Compact dimensions
• Pump and fan control
• Motor noise smoothing

SPECIFICATIONS

Enclosure class: IP20

Frequency: 50/60Hz

Input voltage: 380 to 480 volts

Mounting type: Wall-mounted

Phases: Three

Output current - normal use: 4.5 amps

Output power - light overload use: 1.5kW

Output power - normal use: 1.5kW

Height: 344mm

Length: 217mm

Width: 132mm

Weight: 1.7kg

Product ID: 3AUA0000039629

Units: Each
