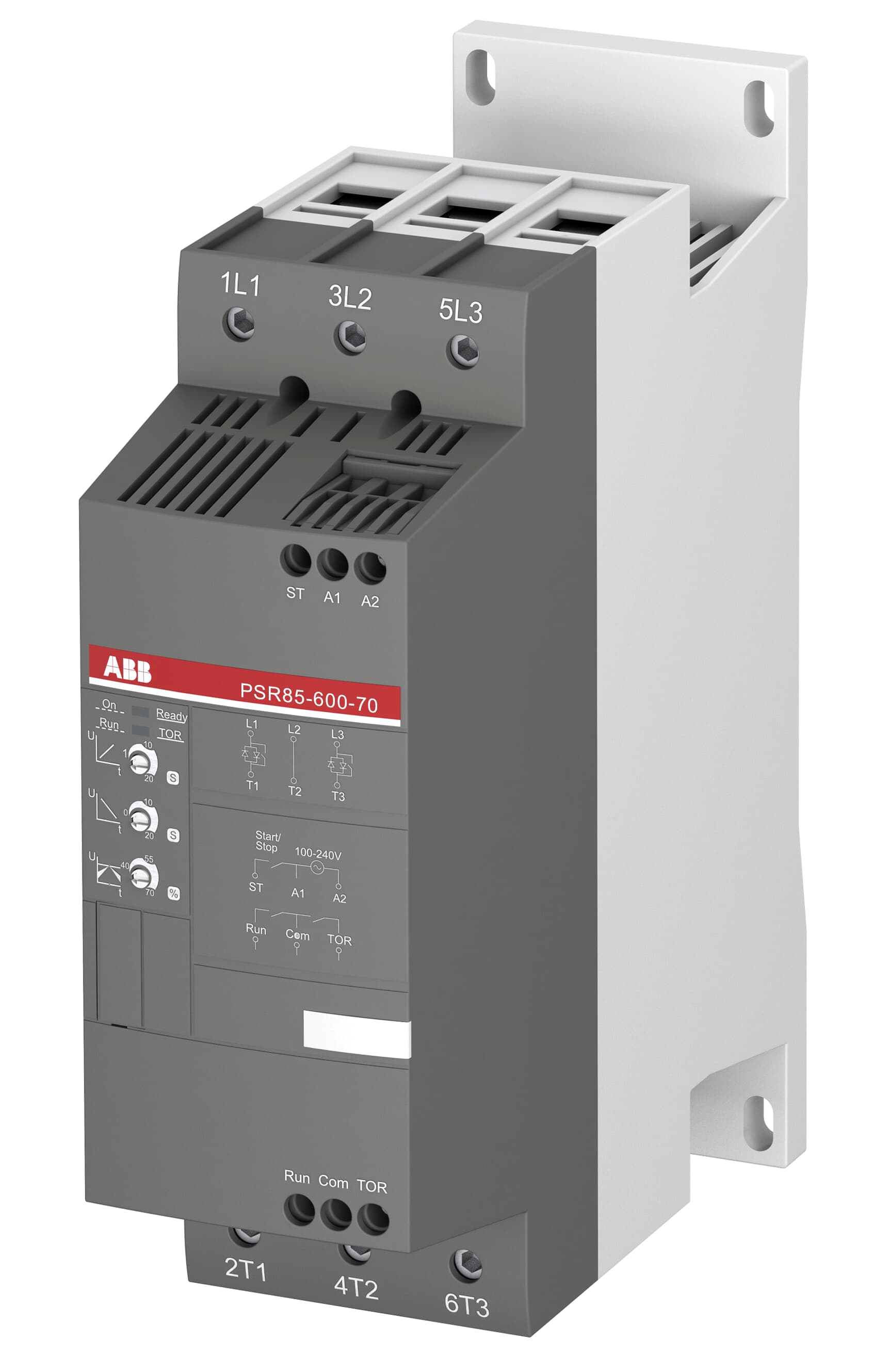

ABB 45kW/85A 600V (max) PSR soft starter IP20 - ISFA896114R7000

ABB's soft starter PSR85-600-70 is part of the simple yet reliable PSR soft starter range that utilises the most basic features: soft start and stop.

It performs well in applications requiring many starts each hour and is perfect for installations where space is at a premium.

PSR85-600-70 is rated for 45kW 85A, for maximum 600 volts main voltage and 100-240 volts 50/60Hz control supply voltage.

FEATURES

• Can perform many starts each hour
• Reduces energy loss at full speed with built-in bypass
• Rated operational current - 3 to 105 amps
• Operational voltage of  208 to 600 volts AC

SPECIFICATIONS

Rated control circuit voltage: 50Hz/60Hz 100-240 volts AC

Rated operational voltage: 208-600 volts AC

Rated control supply voltage: 100-240 volts AC

Rated frequency: 50/60Hz, main circuit 50/60Hz

Protection: IP20

Width: 180mm

Height: 220mm

Depth/length: 70mm

Weight: 2.1kg

Product ID: ISFA896114R7000

Units: Each
