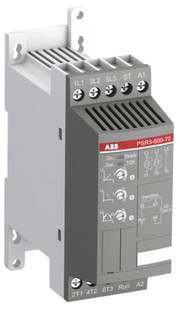

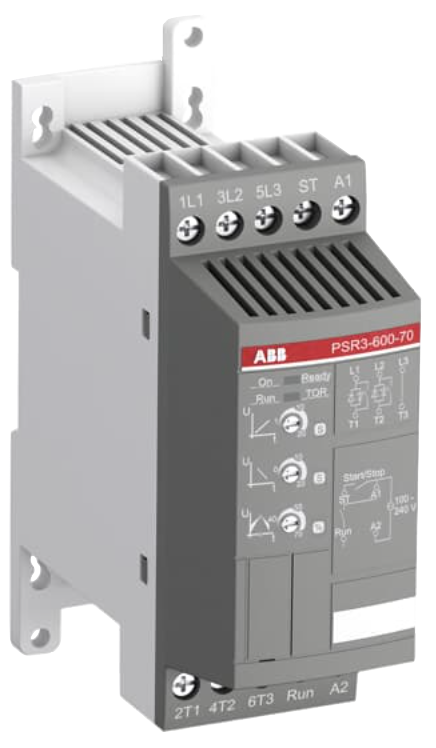

ABB 1.5kW/400V 3.4FLA PSR soft starter IP20 - 1SFA896103R1100

ABB's soft starter PSR3-600-11 is part of the simple yet reliable PSR soft starter range that utilises the most basic features: soft start and stop.

It performs well in applications requiring many starts each hour and is perfect for installations where space is at a premium.

ABB PSR Soft Starter is rated at 1.5kW @ 400 volts 3.4FLA, for maximum 208 to 600 volts main voltage and 24 volts AC/DC 50/60Hz control supply voltage.

FEATURES

• Compact
• Can perform many starts each hour
• Reduces energy loss at full speed with built-in bypass
• Rated operational current - 3 to 105 amps
• Operational voltage of  208 to 600 volts AC

SPECIFICATIONS

Rated control circuit voltage: DC operation 24 volts

Protection: IP20

Width: 114mm

Height: 140mm

Depth/length: 45mm

Weight: 0.4kg

Units: Each
