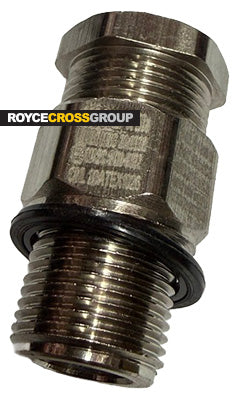

A2F-R compression gland (Ex) - 7mm to 12mm, M20

SPECIFICATIONS

Type: A2F-R compression gland

Category: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC, Ex nR IIC

Sealing area: Outer sheath

Gland size reference: 0s-20s

Metric entry thread: M20x1.5; 15.0

NPT entry thread: 1/2-3/4; 15.0

Cable detail: 7.0 min; 12.0 max

Maximum length: 25.0

Hexagonal detail: 24.0 max flats; 27.0 max crns

Installation torque value: 32.5Nm

Option accessories (sold separately): Adaptor, reducer, earth tag, lock nut, serrated washer, shroud

Units: Each
