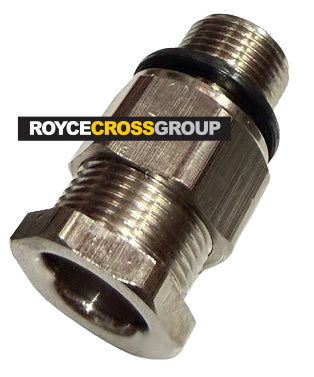

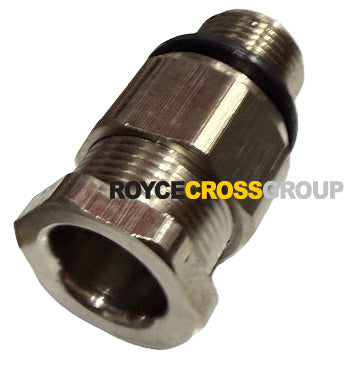

A2F-R compression gland - 11mm to 15mm M20

The compression gland for single or multi-core unarmoured cable is fitted with a specially formulated elastomeric displacement seal,  providing cable and explosion protection.

Royce Cross Group stocks a vast range of glands, cinluding those suitable for hazardous areas.

SPECIFICATIONS

Type: A2F-r compression gland

Gland size reference: 1-20

Metric entry thread: M20x1.5

Cable detail: 11mm minimum and 15mm maximum

Maximum length: 30mm

Hexagonal detail: 27 max flats; 30 max corners

Installation torque value: 32.5Nm

Units: Each
