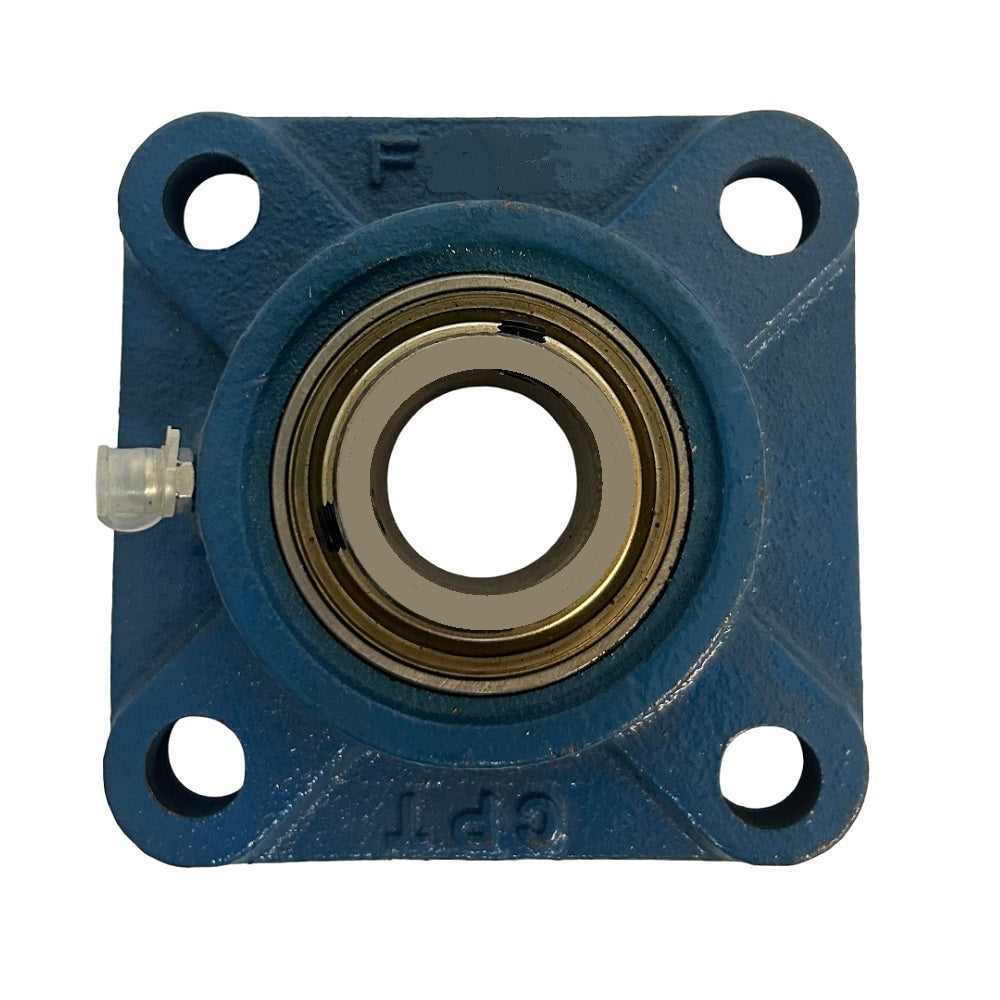

4-hole flange bearing housing with 30mm bearing

Made from cast iron with the assembly suitable for low-torque applications, the four-hole flange bearing units consist of a housing with four radial holes for mounting and a ball bearing inserted within the centre of the housing.

FEATURES

• Triple lipped seals with shields as standard
• Sealed units for longer life
• Interchangeable with other makes

SPECIFICATIONS

Type: Four bolt flange unit (UCF)

Bearing unit: UCF206

Bearing unit metric shaft diameter: 30mm

Bearing unit overall length: 108mm

Bearing unit housing width: 31mm

Weight: 1.1kg

Units: Each
