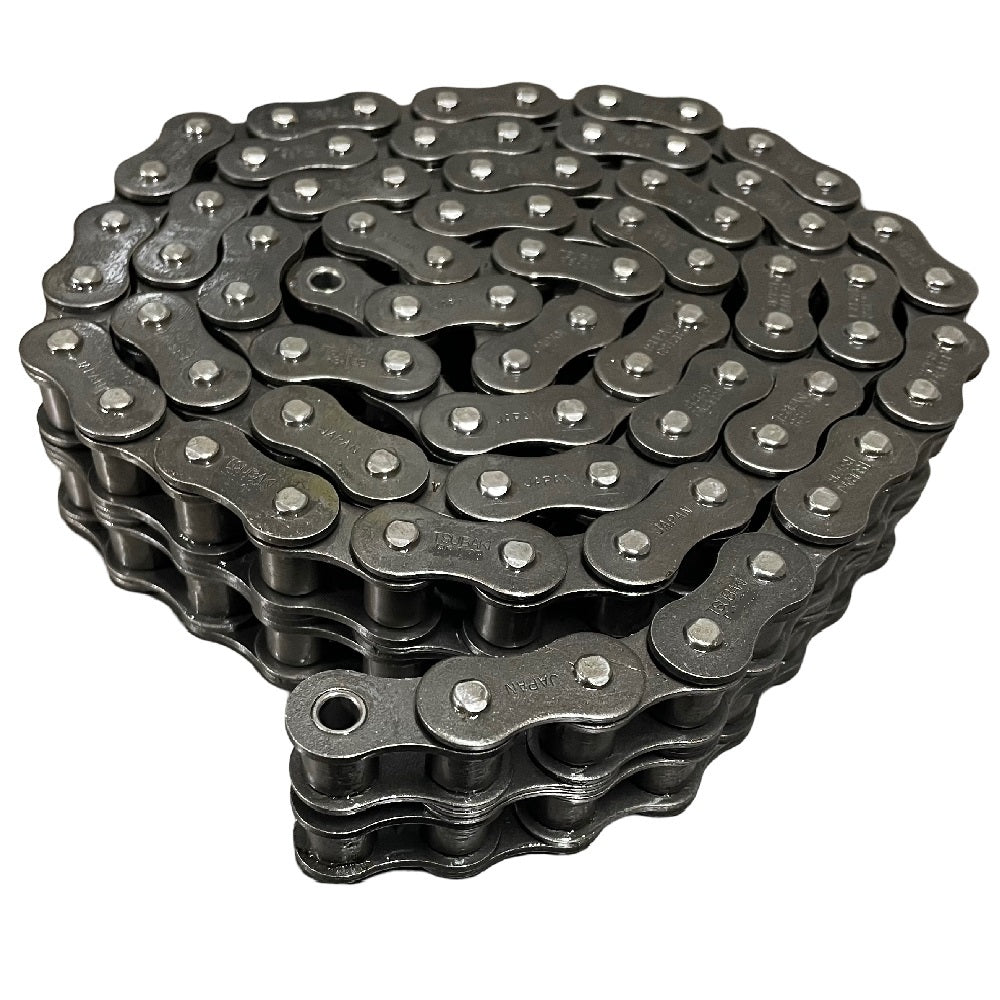

3/8" American standard ASA35-2 Tsubaki double-strand roller chain

This double-strand roller chain is designed for industrial and agricultural uses.

It is interchangeable with other chains conforming to ANSI standards.

This chain, connecting links and offset links is available in sizes from ASA 25 to ASA 200. Simplex, duplex and triplex executions are available.

Royce Cross Group will cut chain to your specified length for sizes up to RS16B and RS80 in single- strand and double-strand types.

FEATURES

• Easy handling
• Quality chain
• Long wear

TECHNICAL DATA

ANSI No: 35-2

Pitch: 9.525mm

Pin from pin head to CL: 10.9mm; 11.9mm

Transverse pitch: 10.1mm

Average tensile strength: 22.6kN

Average weight: 0.69kg/m

Number of links per box: 320

Box length: Sold per foot, available in 10 foot packs.
