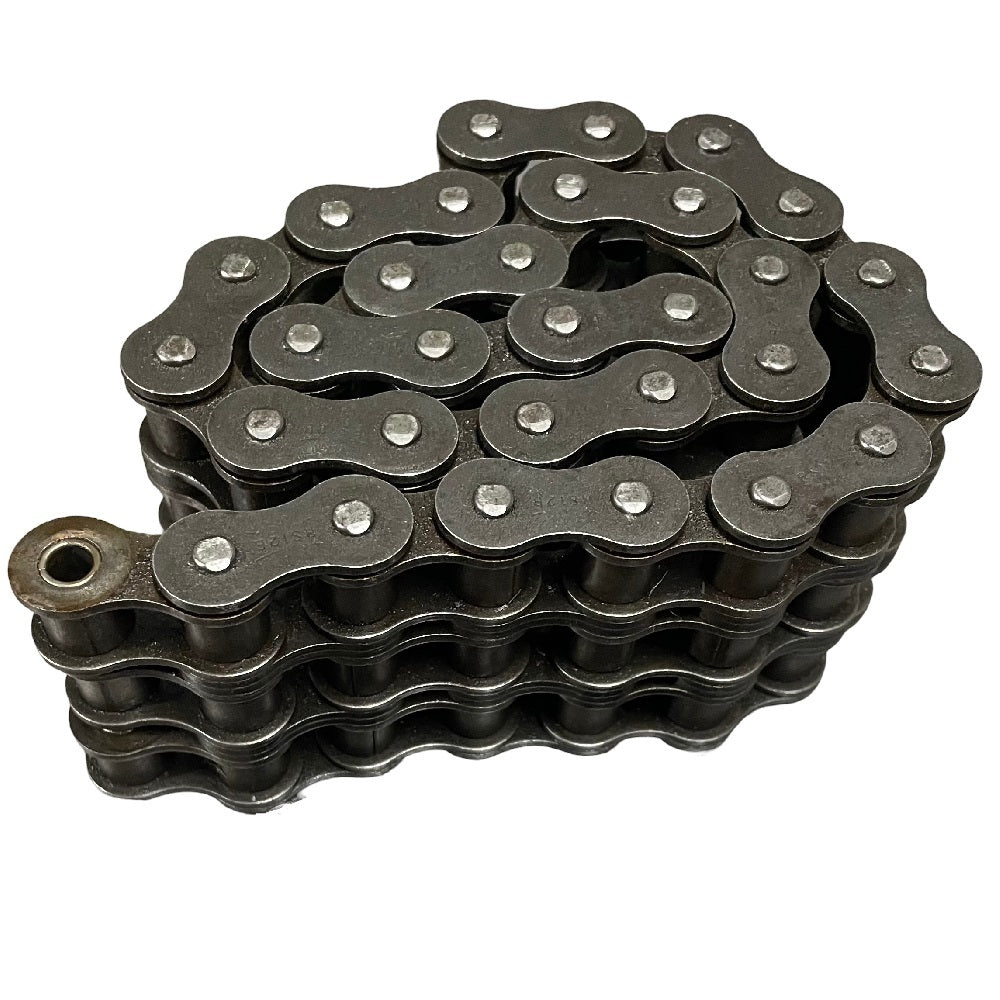

3/4" American standard  ASA60-3 Tsubaki triple-strand roller chain

This triple-strand roller chain is designed for light industrial and agricultural uses.

This chain, connecting links and offset links is available in sizes from ASA 25 to ASA 200. Simplex, duplex and triplex executions are available.

Royce Cross Group will cut chain to your specified length for sizes up to RS16B and RS80 in Tsubaki single-strand and double-strand types.

FEATURES

• Easy handling
• Quality chain
• Long wear

TECHNICAL DATA

ANSI No: 60-3

Pitch: 19.05mm

Pin from pin head to CL: (L1) 35.65mm; (L2) 38.15mm

Transverse pitch: 22.8mm

Average tensile strength: 132kN

Average weight: 4.54kg/m

Number of links per box: 160

Box length: Sold per foot, available in 10 foot packs only. This chain is available to be ordered in shorter lengths.
