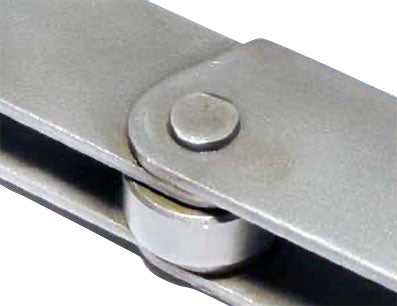

3" solid pin 15,000lb LB conveyor chain with deep side plates

Tsubaki's British Standard conveyor chain is manufactured to exacting specifications.

FEATURES

• All parts are shot peened for greater fatigue strength and durability
• Statically pre-loaded to reduce initial wear
• Pre-lubricated

DIMENSIONS

Pitch: 3" (76.20 metric)

Width between inner plates: 19mm

Roller diameter: 47.6mm

Bush diameter: 23.6mm

Solid pin diameter: 19mm

Solid pin length (max): 46mm

Connecting pin length (max): 49.8mm

Inner plate height: 51.05mm

Inner plate thickness: 5.1mm

Outer plate height: 32mm thick

Outer side thickness: 3.8mm

Average weight/metre: 8.59kg

Units: Foot
