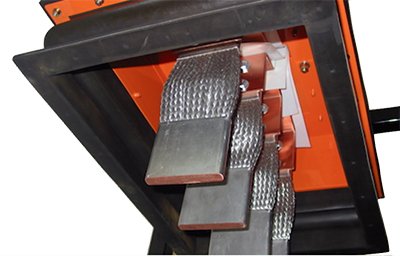

2500A flexible braided link 350mm

The braided connection links from Vass can be used to connect any items of electrical machinery.

The cross-sectional area of the flexible braided links is based on the phase conductors in the totally enclosed Vass Electrobar H-series busway.

Standard lengths are 350mm (150mm of free braid). Special lengths in increments of 25mm can be made to order. NOTE: Excessive lengths may require additional surge bracing.

Palms are supplied with no connection holes as standard but pre-drilling is available on request. All special orders require advance payment.

FEATURES

• Help reduce stress on insulators and transmission of vibrations between machinery

SPECIFICATIONS

Rating (A nom):  2500

Links per phase: 2

Cross section per phase: 1200mm2

Units: Each
